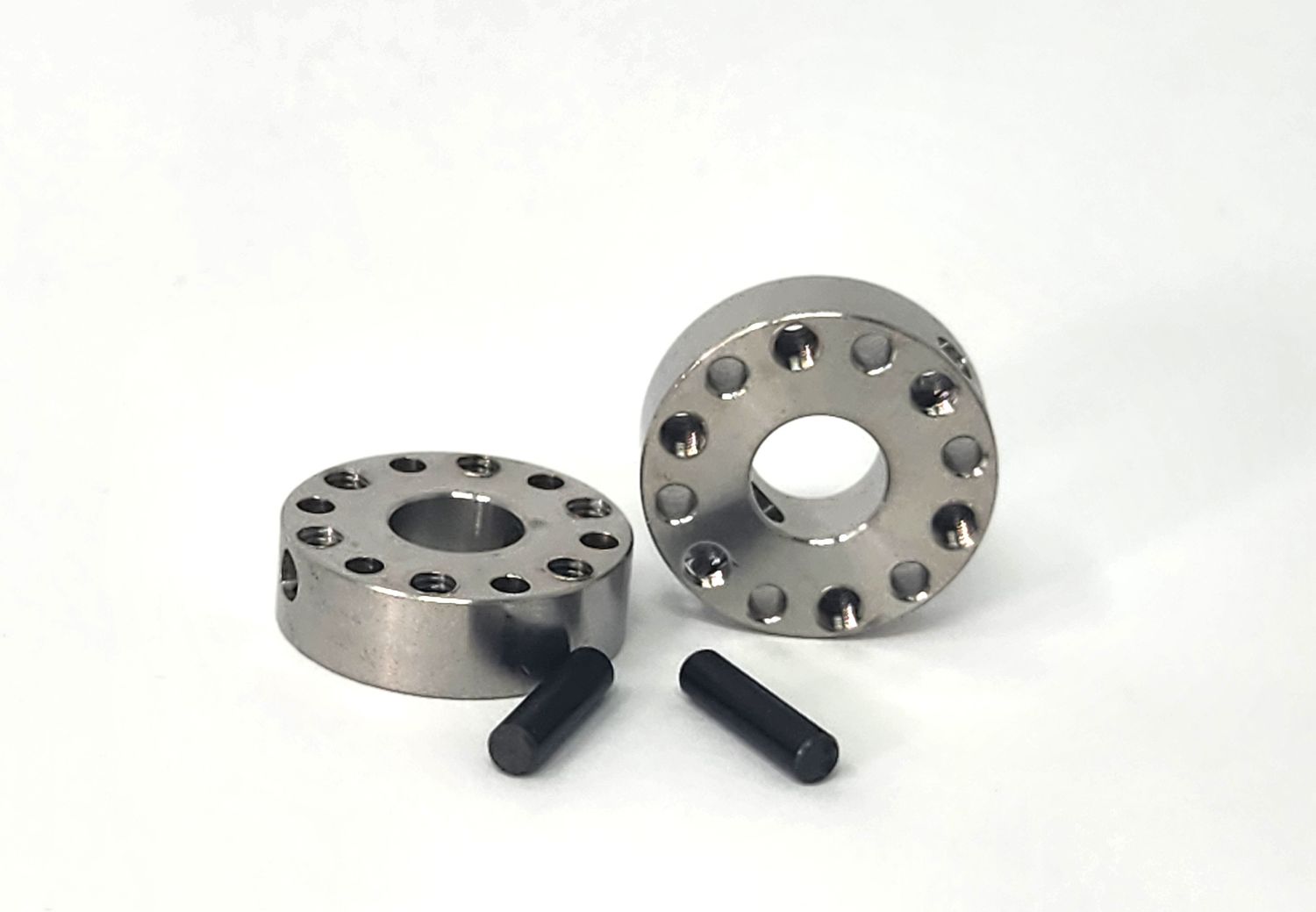

Stainless wheel hubs - 8mm stub shaft

Stainless hubs now have a 3mm thru hole for the stub shaft. If your stub has a 2.5mm hole, you will either need to drill the stub to 3mm or run a 2.5mm pin in the hub.

Hubs are threaded for 3mm only. They do have holes for a 4-40 thread but to keep costs down, this thread is not completed. I can thread these holes if you choose the option to do so.

These hubs will have some slop when installed on the stub shaft. This is due to the design and also the tolerances of the different stub shafts.

Stainless 0 offset hubs are the narrowest setup around. These will make you narrower than a standard 12mm hex using a 225 SLW hub.

Hubs use the industry standard bolt pattern that many wheels such as Dlux or Vanquish products use. 6x.666".

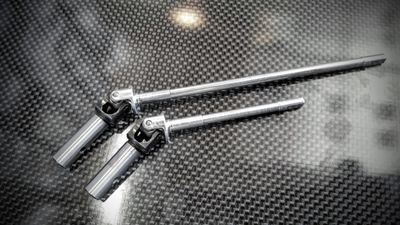

Here is a video explaining how all the hubs go on the 8mm stubs.

Each purchase includes:
2- stainless hubs
2- hex pins
