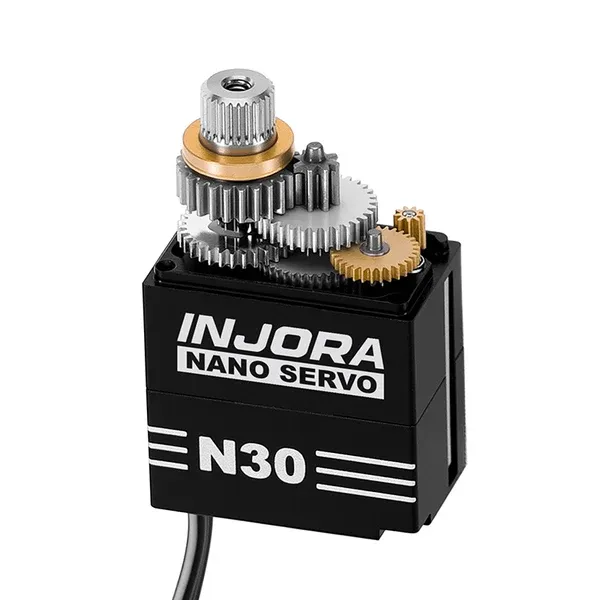

INJORA Aluminum N30 NANO Servo with Servo Saver for 1/30 SCX30

INJORA Aluminum N30 NANO Servo with Servo Saver for 1/30 Axial SCX30

Features:

• CNC-machined aluminum servo case for added strength and durability
• Metal gear set built to handle higher steering loads
• Higher torque output than the stock servo for stronger steering performance
• Spring-loaded servo saver helps absorb impacts and protect the servo gears

Specifications:

• Part Number: N30
• Motor Type: Brushed Coreless
• Gear Type: Metal
• Case Material: Aluminum Alloy
• Feedback Type: Potentiometer
• Operating Voltage: 5–6.0V
• Control Signal: PWM
• No-load Speed (6V): 0.050 sec/60°
• No-load Current (6V): 110mA
• Stall Torque (6V): 1.3kgf·cm
• Stall Current (6V): 660mA
• Operating Angle: 180° (500–2500 μsec)
• Dimensions: 15.2×12.85×21.45mm
• Wire Length: JR 115mm / 28AWG
• Weight: 7g
• Waterproof: No

Package List:
1 × N30 Servo
1 × Servo Saver
