2.2 class Front SuperLite axles
Home/Store/Axles/Axle Shafts/Axle Parts
Product Details

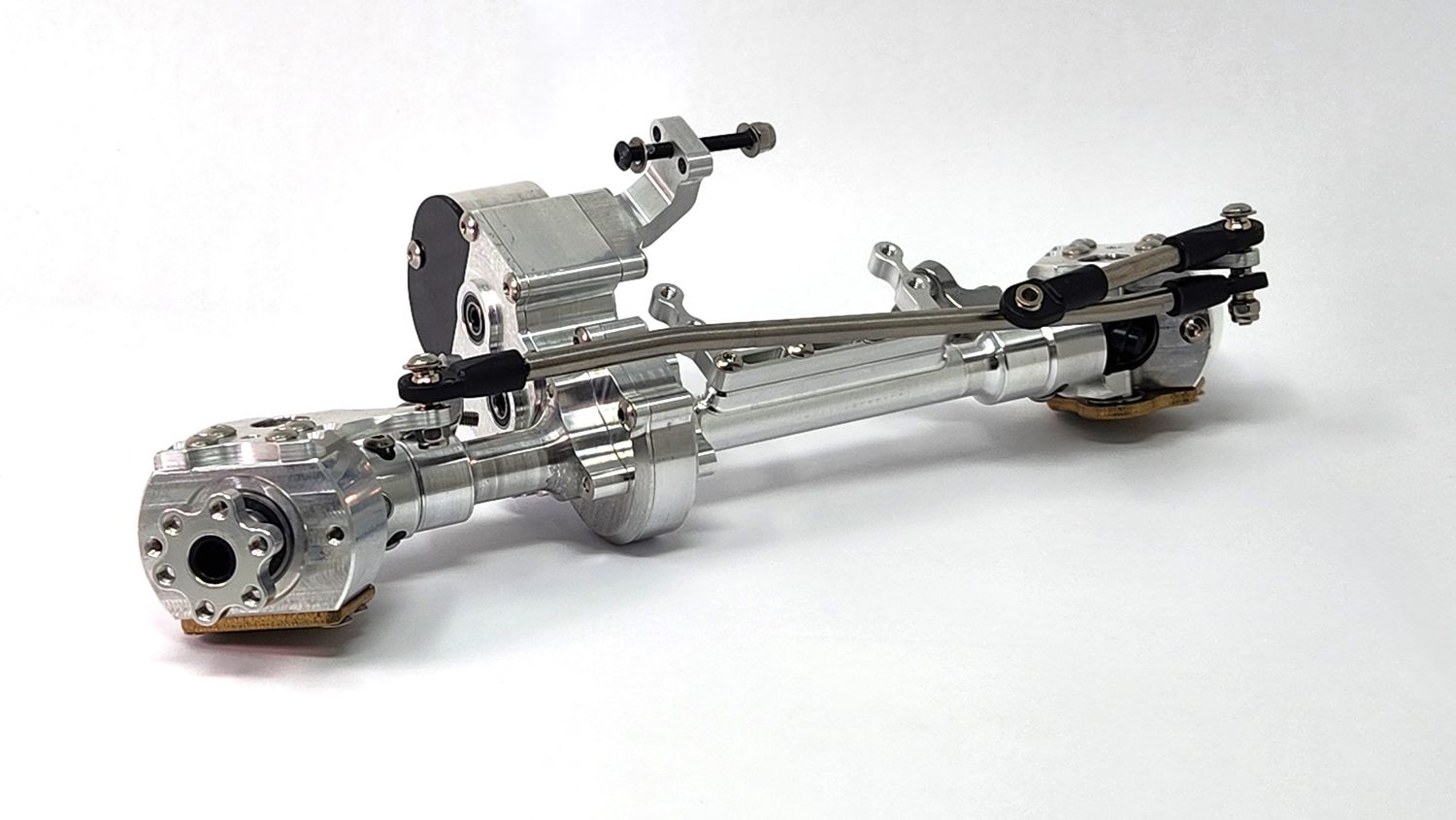

Front axle come assembled with:

Dlux Super lite center cases with 7075 side plates and bearings
7075 Center section
Dlux 7075 upper link mount
7075 tubes
7075 0* c hubs
7075 angled link mounts
Dlux knuckles full brass standard or Brass lower arm, Aluminum center, Aluminum upper arm if ordering loaded dice
Dlux FBA 8mm Universal shafts
.475 7075 hubs included. WMS (wheel mounting surface to wheel mounting surface) width of just over 10".
Dlux 7075 lockers
3/16" Titanium steering links
Aluminum servo mount
Battery mounts (mounting options shown in photo)

Low ratio SAF gears
Fits 9-17 Tooth pinions (48 Pitch)

Knuckles will either come in brass (brass upper arm, brass lower arm, brass center) or aluminum (aluminum upper arm, brass lower arm, aluminum center). Please also choose if you want the knuckle centers to have slug holes and slugs. This is a great option for tuning the weight of the knuckle as you can put the slugs in to add weight and take them out to remove weight. Please see weight changes below.

Slugs weigh:

17g brass
36g tungsten
Slug holes take out approx:
19g in brass

7g in aluminum







Show More
You May Also Like

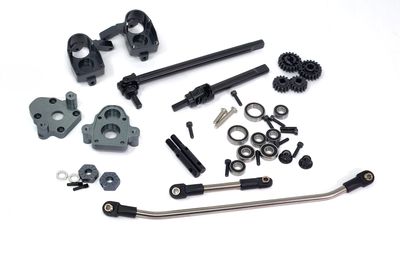

Portal Conversion for FRONT Superlite
