Dlux S2 ESC, Battery Connection: XT30
+4
+3
+2

Dlux S2 ESC

Home/Store/Universal
SKU 51061
$110.00
Battery Connection
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it

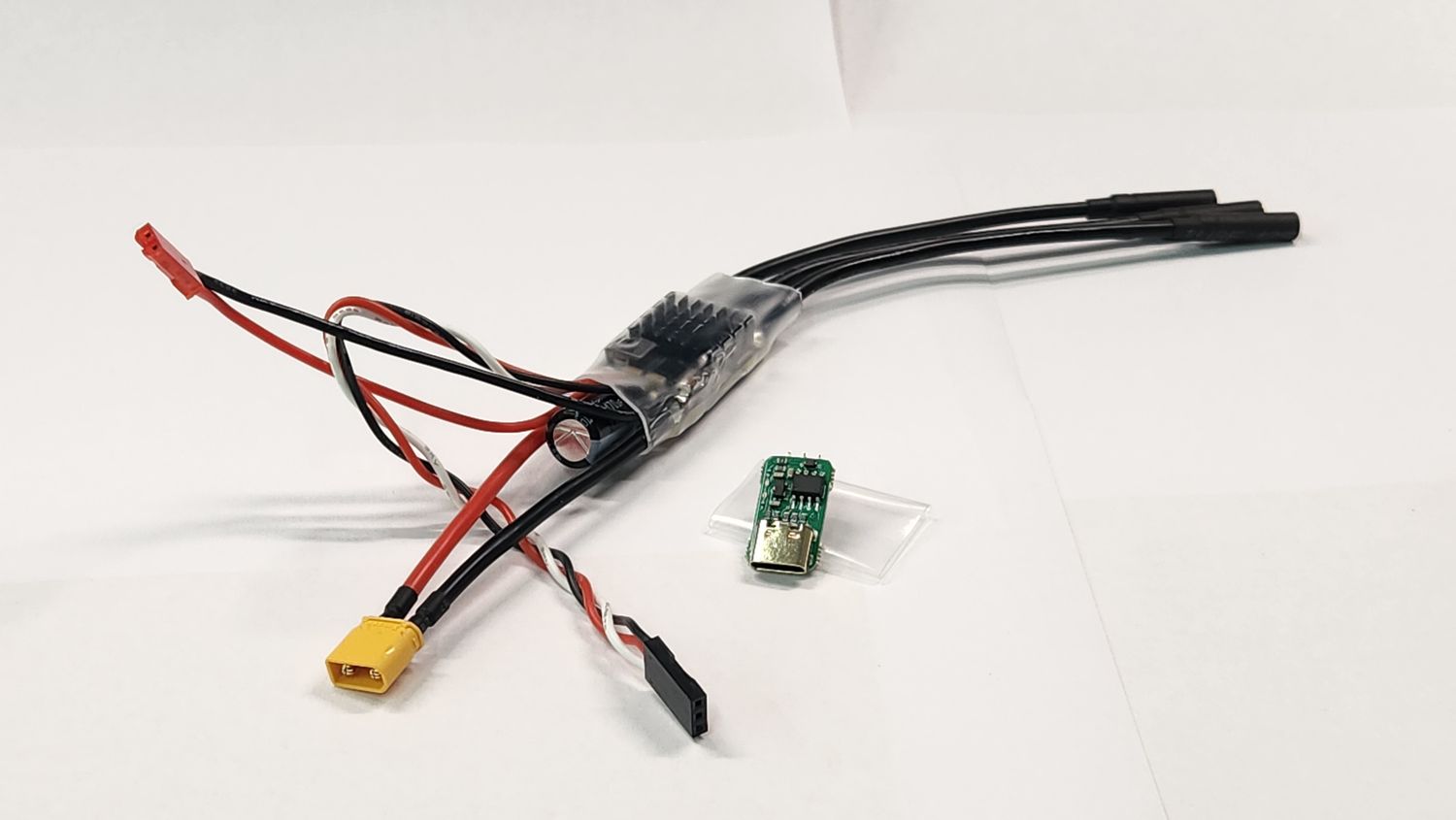

Dlux S2 ESC
Home/Store/Universal
Product Details

AM32 firmware for the quietest, smoothest control of non-sensored brushless motors


70 Amp continuous / 110A burst current rating. Rated for up to 8S (8 Cell, 33.6 Volt) batteries, 3S(12.6V) or 4S (16.8V) recommended. Note: Be sure to check your servo specifications for recommended maximum operating voltage.


Perfect for outrunner motors, or any non-sensored brushless motor.

Fully programmable. USB programmer is included! Works for most AM32 ESC's.

Includes integrated 5A BEC set to 7.4 volts (non-adjustable). Note: High power 3 wire servos will require an external BEC.

Includes JST connector for direct power servo or BEC.

Includes 4mm bullet connectors for motor.

Includes either XT30, XT60, or Deans battery connector.

Heat sink can be removed for weight savings.


In-house conformal coated with premium materials for the ultimate in water resistance.


Not intended for brushed motors.


**External TVS diode recommended for direct power servos on 4s power, consult your servo manufacturer for more information**

Show More
You May Also Like
Dlux Stumpy brushless outrunner motor
Dlux Stumpy brushless outrunner motor
Dlux Stumpy brushless outrunner motor
SKU 51725

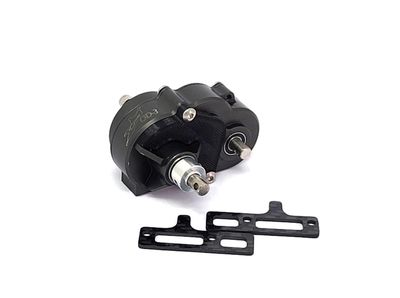

OD-3 Overdrive Transmission for Straight Axles
OD-3 Overdrive Transmission for Straight Axles
OD-3 Overdrive Transmission for Straight Axles
SKU 51175

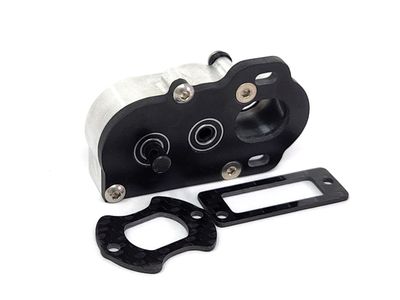

NOD-2 Transmission for Straight Axles
NOD-2 Transmission for Straight Axles
NOD-2 Transmission for Straight Axles
SKU 51214
Dlux Portal Transmission
Dlux Portal Transmission
Dlux Portal Transmission
SKU 51269

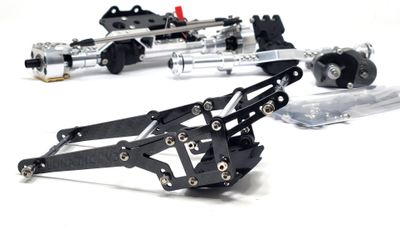

Lunatic Sporty Kit Car
