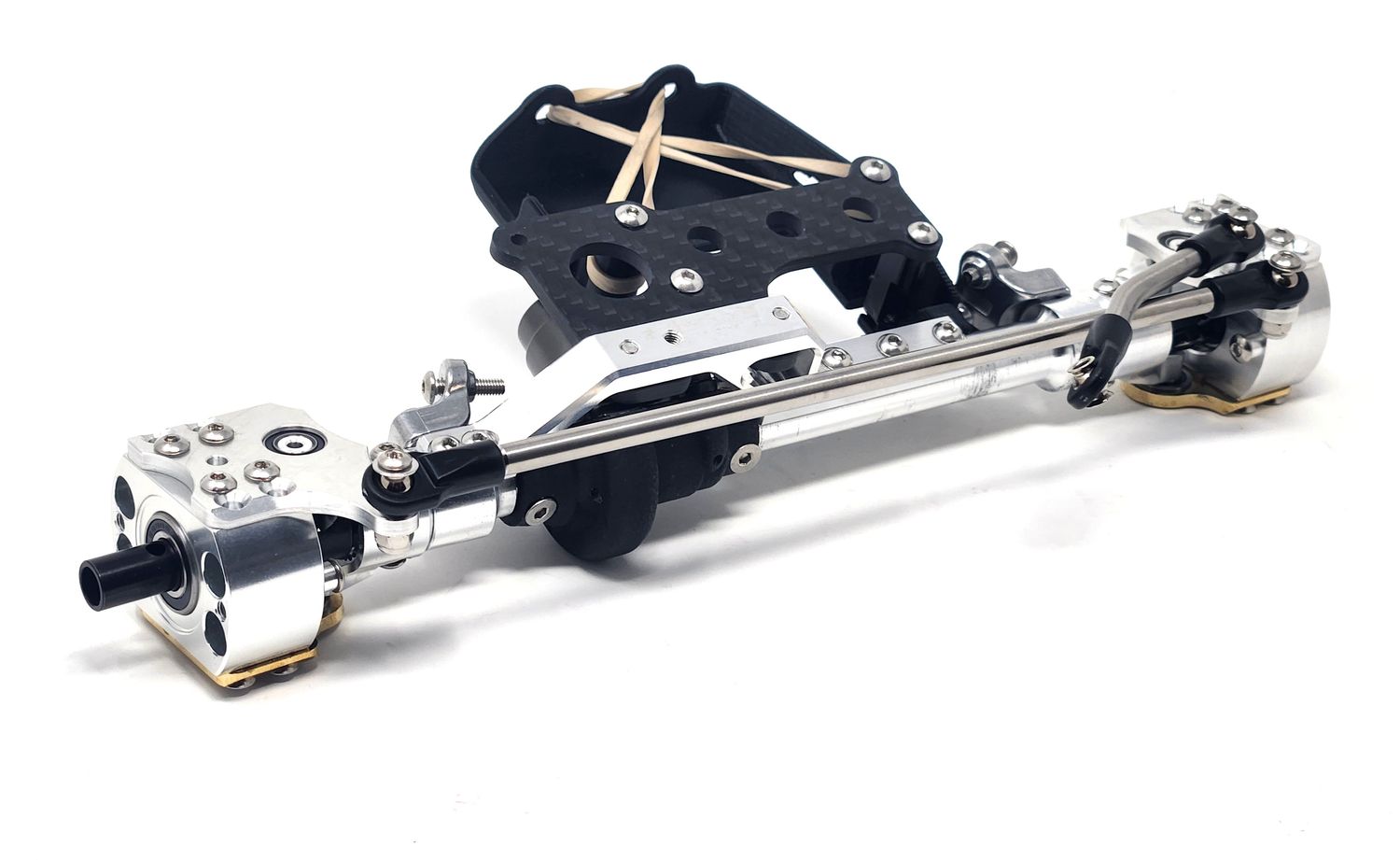

SSDlux Sporty FRONT Axle

SSDlux Front Sporty axle (Version 2)

Features:

New DX44 high clearance center section
XR10 width
7075 front tubes
Overdrive Ring and Pinion Gears.
Titanium steering links
Dlux Knuckles, Aluminum with empty slug holes, Brass lowers, Aluminum upper arms.
Dlux FBA shafts
0* C Hubs (king pin inclination)

This sporty version will include the sporty battery tray and sporty style truss
**The sporty axle is only available as a right drop**

Choose either Axial stub shafts or 8mm stub shafts.

Axial stub-shafts are approx. 8-13/16" wide hex-to-hex

8mm stub shafts with .225 hubs give a WMS (wheel mounting surface to wheel mounting surface) width of just over 9.75".

• Does not come with wheel hexes or hubs, but you can buy them here: https://dluxfab.com/Wheel-hubs-hexes-8mm-stub-shaf...
• Requires 21mm or shorter compact servo horn (20mm recommended)

Version 2 features:

1. 7075 aluminum tubes with splined positive locking C hub engagement (adjustable)
2. Bolt on angled link mounts (aluminum)
3. Billet aluminum truss removes nearly all twisting and bending loads from the center section
4. Highly offset differential for additional ground clearance in the center
5. Integrated carbon fiber servo mount places the servo extremely low for the lowest possible center of gravity

The version 2 axles are much stronger and can withstand anything that might be thrown their way. They are designed to keep all the weight low to the ground, but still have amazing ground clearance. Redesigned to have all the best features for your crawling rig. These are recommended for your Sporty.
