NSDRC RS800 V2 Ultra High Torque Brushless Servo
Home/Store/Universal
Product Details

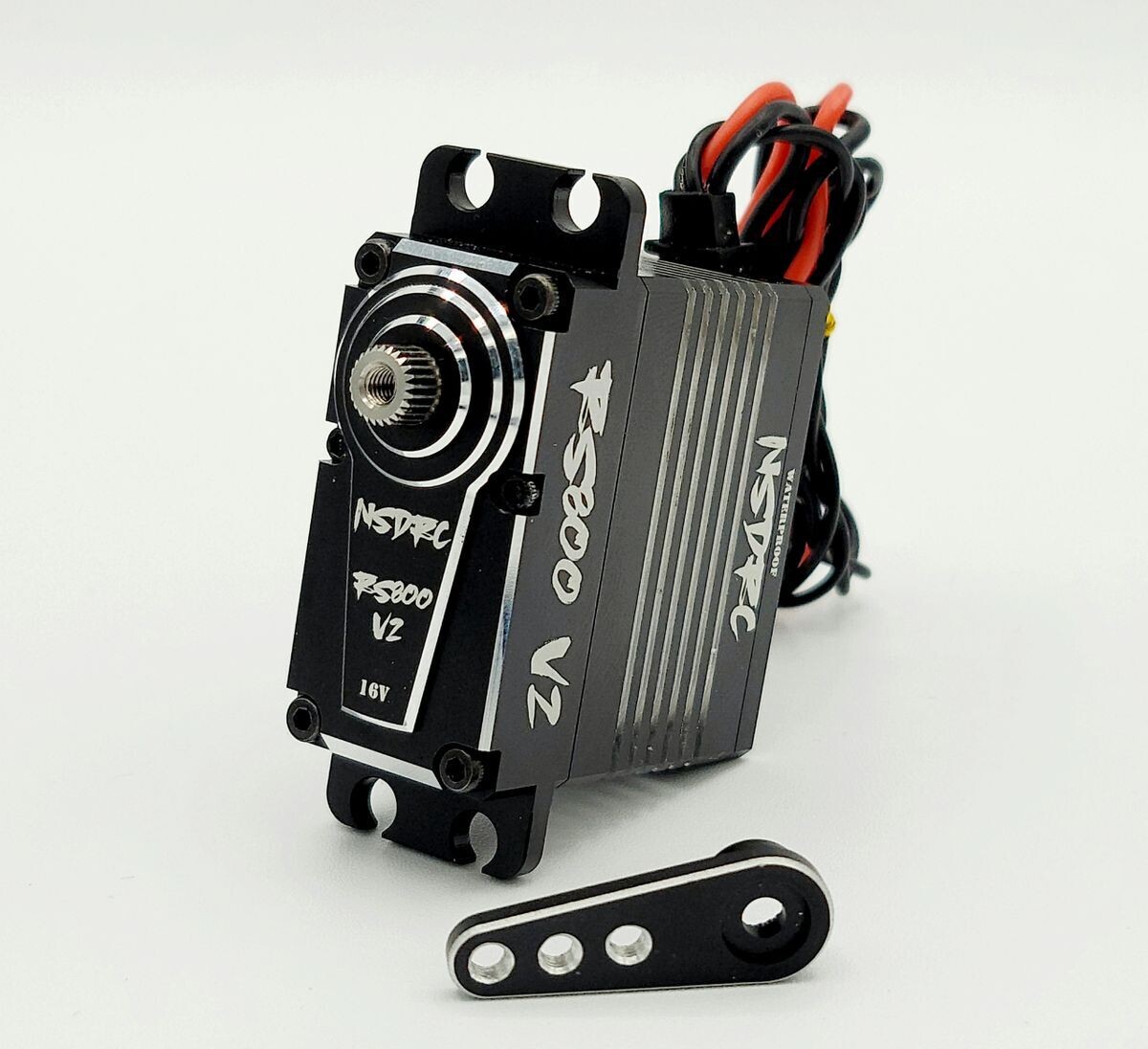

***Shown with optional servo horn - sold separately.***

Our RS800 V2 is one of the strongest servo's on the market! With our proven hardened stainless steel gears that have not failed once, with an upgraded 2mm thick main dowel pin and a 1.9mm secondary! Built with the highest quality parts, designed for the power and speed demands of competition level RC crawlers. At just 2s lipo you'll be making 600oz of tire twisting power!! Then upward of 900oz on 3s lipo, and over 1100oz on 4s lipo 16.8v!!!

Operating Voltage: 8.4v - 16.8v

Torque: 600 oz-in @ 8.4v

Torque: 900 oz-in @ 12.6v

Torque: 1100+ oz-in @ 16.8v

Speed: 0.18 sec @ 8.4v

Speed: 0.14 sec @ 12.6v

Speed: 0.10 sec @ 16.8v

Spline: 25T

Dimension: 40 x 20 x 39mm

Weight: 85

•Direct power 8.4v - 16.8v

•All Aluminum CNC casing

•IP66 Rated Water Resistant, Not Submarine

•Hardened stainless steel gears

•Brushless motor

•High Accuracy encoder

☆Comes with JST power plug.

☆We highly recommend using direct solder connections for best results.

☆The power connection plug, or power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery!

Warranty: Lifetime warranty on gears for original owner. 1 year warranty of servo from all defects! We assume no liability of damage caused from excess abuse, mistreatment, modification of servo/wires, or excess water use. Nothing is unbreakable! For all issues you will need to send the servo in to NSDRC to be inspected for warranty.
