SSDlux FRONT Axle

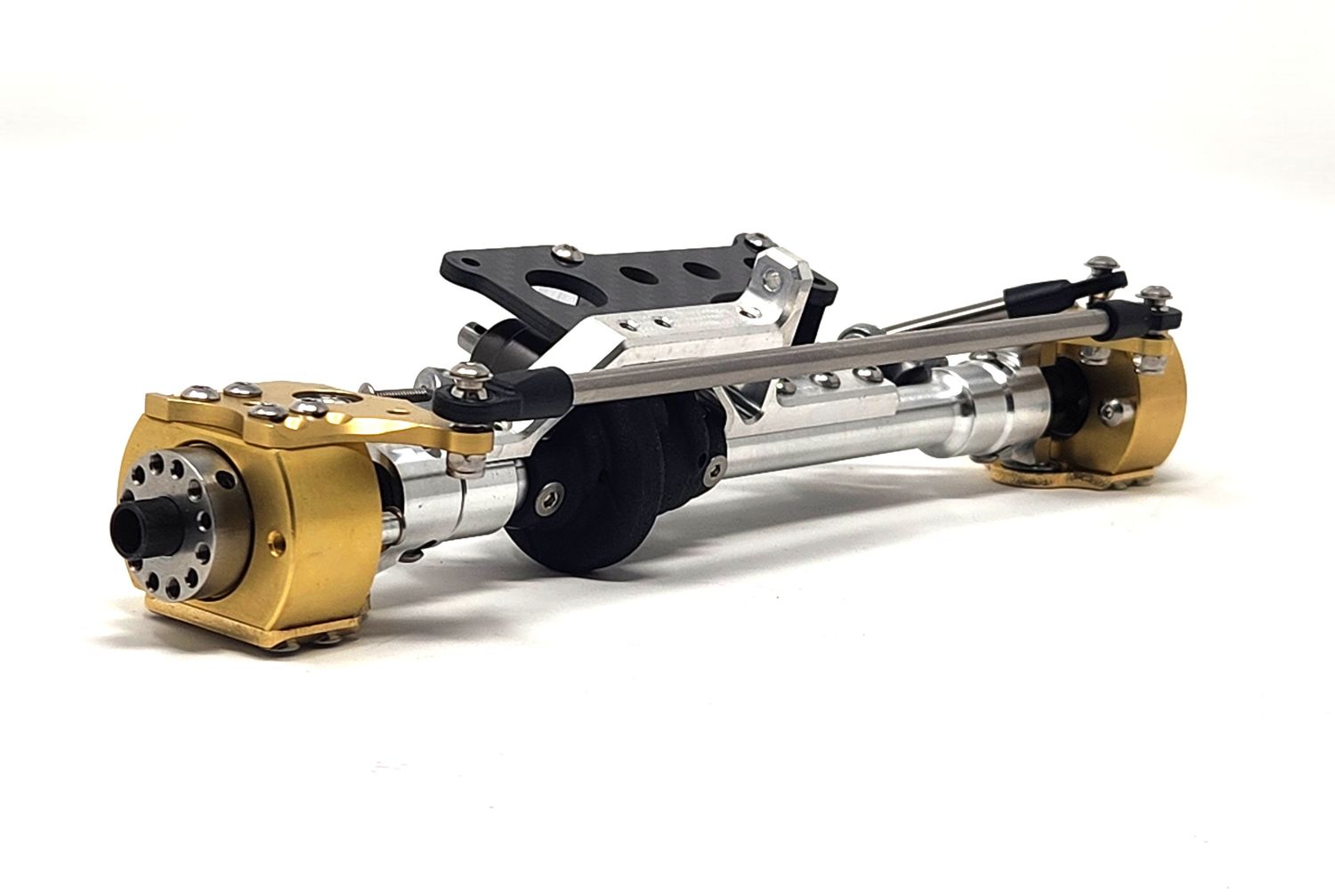

SSDlux Front axle (Version 2)

Features:

New DX44 high clearance center section
XR10 width
7075 front tubes
Overdrive or Standard Gears.
Titanium steering links
Dlux Knuckles (Brass )
Dlux FBA shafts

Choose either Axial stub shafts or 8mm stub shafts.

Axial stub-shafts are approx. 8-13/16" wide hex-to-hex

8mm stub shafts with .225 hubs give a WMS (wheel mounting surface to wheel mounting surface) width of just over 9.75".

0* C Hubs (king pin inclination)

Hubs not included

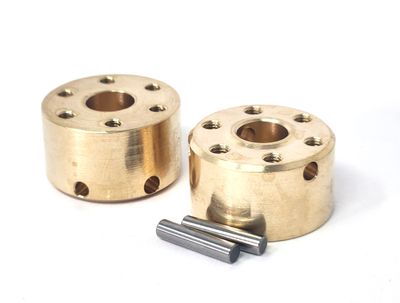

• Does not come with wheel hexes or hubs, but you can buy them here: https://dluxfab.com/Wheel-hubs-hexes-8mm-stub-shaf...

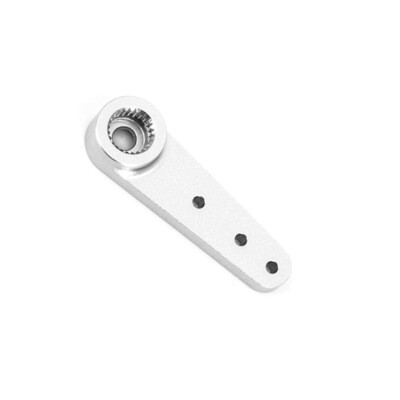

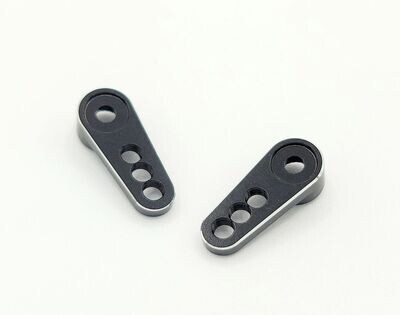

• Requires 21mm or shorter compact servo horn (20mm recommended)

Version 2 features:

1. 7075 aluminum tubes with splined positive locking C hub engagement (adjustable)
2. Bolt on angled link mounts (aluminum)
3. Billet aluminum truss removes nearly all twisting and bending loads from the center section
4. Highly offset differential for additional ground clearance in the center
5. Integrated carbon fiber servo mount places the servo extremely low for the lowest possible center of gravity
6. Designed for conventional double triangulated 4-link suspension with room for links above the servo (may require bent upper links if used with steep pinion angles)

The version 2 axles are much stronger and can withstand anything that might be thrown their way. They are designed to keep all the weight low to the ground, but still have amazing ground clearance. Redesigned to have all the best features for your crawling rig. These are recommended for Sporty or Class 3 Scalers front and rear.
