OD-4 Transmission

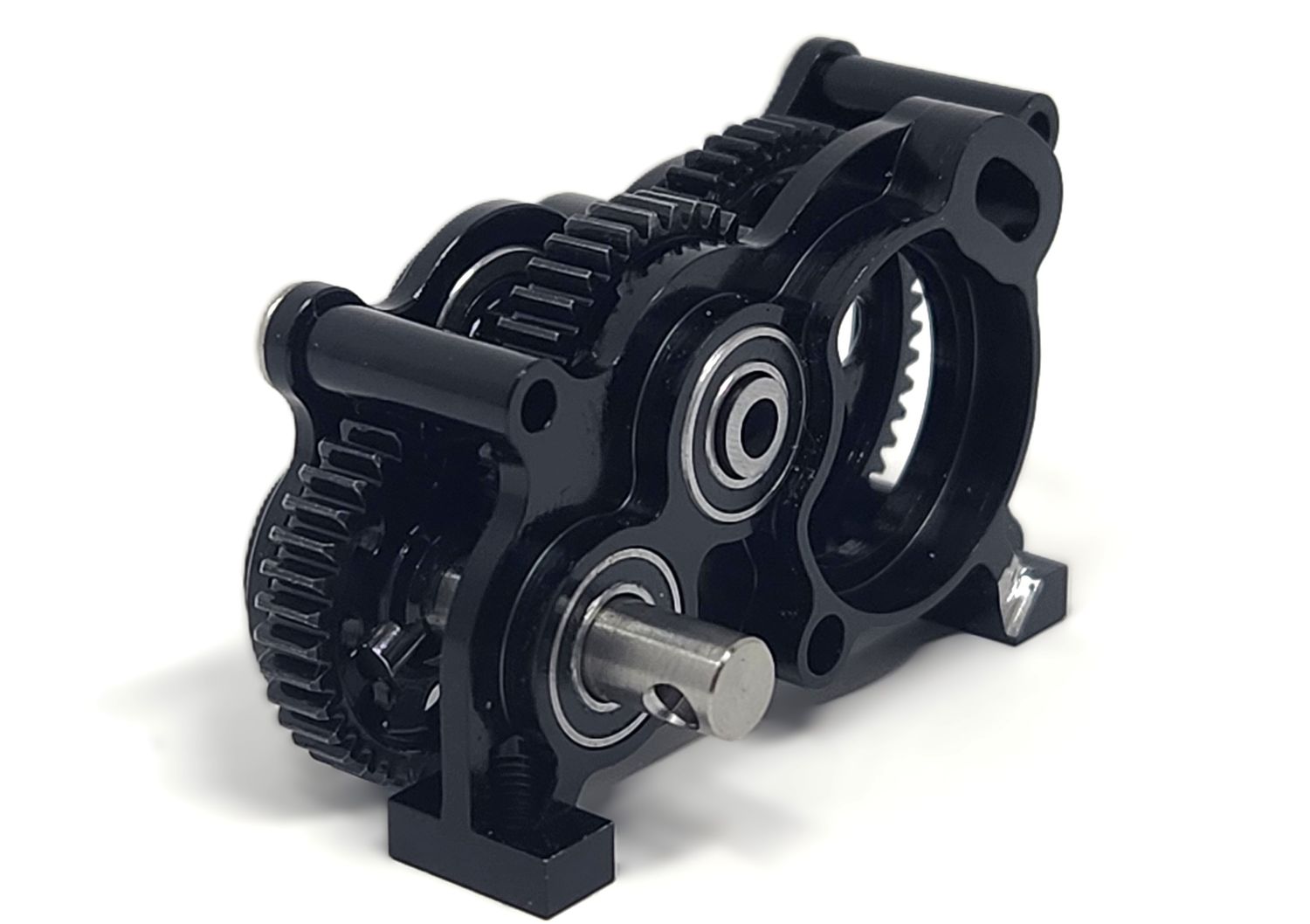

OD-4 transmission assembly:

• The same transmission found in our wildly successful La Perra Loca mini class crawler.
• Complete transmission assembly.
• Extremely compact. Designed for belly skids as narrow as 50mm.
• Extremely lightweight. (44g)
• 28% underdrive to the rear output.
• Motor forward design. Left motor.
• Hardened alloy steel gears.
• Grade 5 Titanium output shafts. 5mm Diameter.
• Designed for compact motors such as the Dlux Stumpy, or Holmes Hobbies 380 Revolver. Larger motors can fit with highly restricted choice of pinion gear.
• 3:1 gear ratio with a 36 tooth spur gear.
• Fits 9 to 18 tooth pinion sizes. 48 pitch.
• Gear ratio example with an 8.55MPH top speed: 10 tooth pinion, 2200KV Dlux Stumpy Motor, 3S battery, 4.2" tall RC4WD Bully pin tires.
