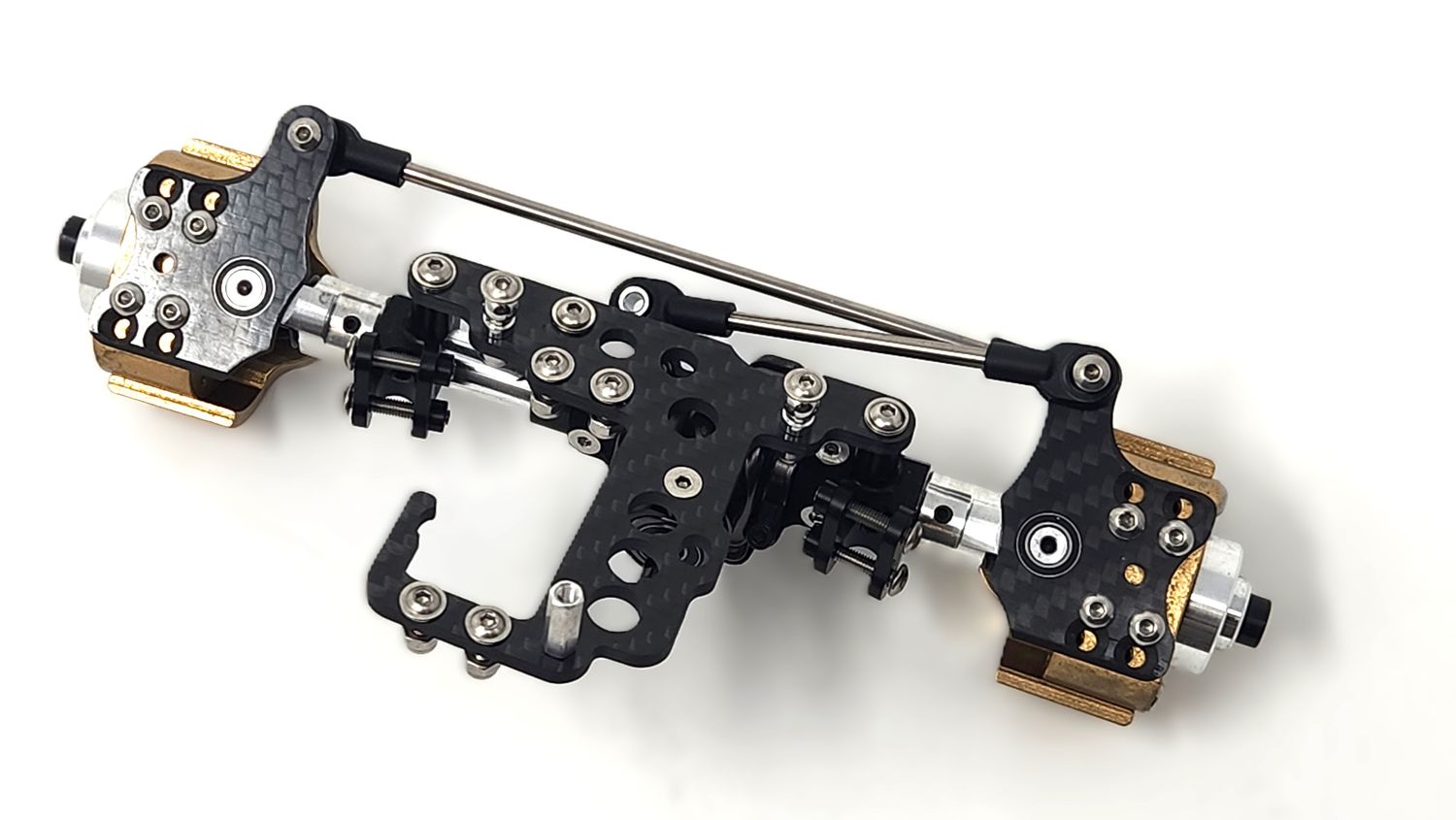

Mini Axle, Front

Narrow front axle for WRCCA Mini class.

• Fully assembled front axle assembly.
• DX44 high clearance center section.
• 7075 Aluminum tubes.
• 0* Chubs.
• 8mm stub shafts.
• Carbon fiber truss with integrated behind the axle servo mount.
• Lightweight narrow aluminum hubs included.
• Knuckle configuration: Brass knuckles with slug holes (no slugs included), 1.9 extra heavy lower arms, carbon upper arms.
• Grade 5 titanium tie rod and drag link included.
• Full size AR44 ring and pinion. Your choice of ratio.

7 1/2 in wide from hub to hub
