H10 Rear Axle Set

Product information

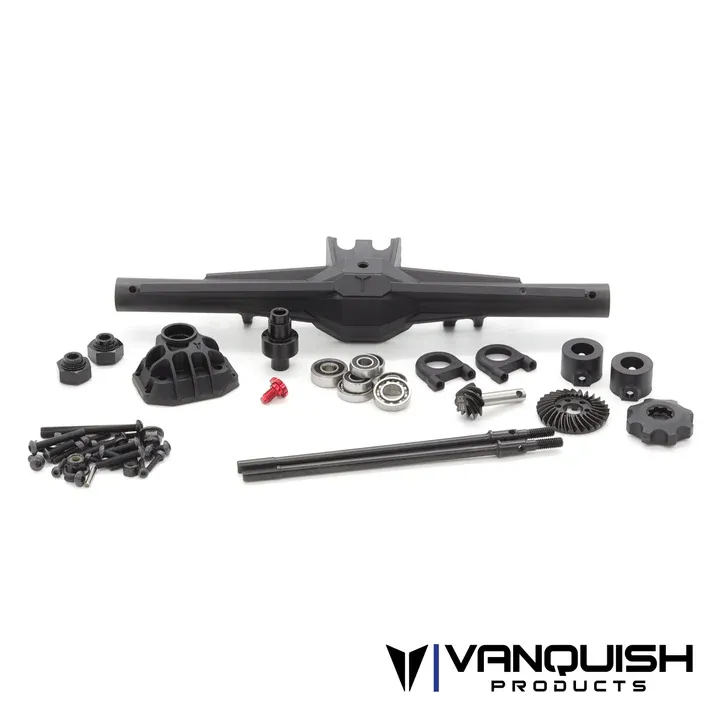

The H10 axle kit offers a complete axle package that brings performance and style to your build. The plastic molded H10 rear axle features an ultra rigid design that is made to run 4-link suspension with 0.600" (15.2mm) of added width compared to the F10 Straight axle. The H10 Rear straight axle set includes a removable 3rd member, one piece bearing retainers and two upper link positions built into the housing.

H10 Rear Axle Set:

• 206.5mm Hex Face Width (8.13")
• Molded Plastic Axle housing
• 2 Upper link mount tuning positions
• High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
• 6-Bolt Ring Gear and Spool
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
• Chromoly axle shafts
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool

Note:

• Does not include link mounting hardware
• Incision .280" width pivot ball compatible
