Dlux Cut-to-Length Driveshaft

Home/Store/Universal
SKU 51291
$40.00
Output/Input Shaft Size
Length
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Dlux Cut-to-Length Driveshaft
Home/Store/Universal
Product Details

Features:

Extremely compact to solve fitment issues associated with larger driveshafts.

One size fits most: Cut to length design. Simply chose your length, cut off the end of the shaft, and assemble with a set screw. Set screw flat runs the whole length of the shaft, so no grinding required. Large 4mm set screw for high clamping force.

Length range 68 to 180mm (2.68" to 7.08")

**Extra long version... extended length: 210mm (8 1/4")

Full size hardware. Large 2mm hex on all fasteners.*

Full size u-joints.

High angle 70 degree angle capable u-joints.

All parts heat treated alloy steel for the ultimate in strength in a compact size.

Light weight.

Heavy duty slip joint with 10mm's of travel to accommodate long travel suspensions.

Splines are keyed for proper u-joint alignment.

***Designed to be abuse proof in Sporty's and scalers. Not intended for rock bouncers or Formula Off Road cars with extreme horsepower and speed combined, although they are proving to be extremely strong. Please let us know if are having good luck running these in a rock bouncer or abusive application. *Update, we have heard a few reports of people abusing these in rock bouncers with great success!

*4mm driveshafts use smaller M3 set screws (1.5mm hex size). 4mm shafts fit 1/18 scale mini crawlers such as the Losi MRC with 4mm transmission output and differential input shafts.

Price is for one driveshaft assembly. Most crawlers require two.

Replacement parts available here:

https://dluxfab.com/Driveshaft-Replacement-Parts-p...




Show More
You May Also Like
SALE!!!
MIP speed tips
MIP speed tips
MIP speed tips
SKU MIP9512
MIP Gen 2 Metric Hex Drivers Set (1.5, 2.0 & 2.5mm)
MIP Gen 2 Metric Hex Drivers Set (1.5, 2.0 & 2.5mm)
MIP Gen 2 Metric Hex Drivers Set (1.5, 2.0 & 2.5mm)
SKU MIP9602
Slug Weights for Dlux Knuckles
Slug Weights for Dlux Knuckles
Slug Weights for Dlux Knuckles
SKU 50970
Dlux Knuckle Arms Lower
Dlux Knuckle Arms Lower
Dlux Knuckle Arms Lower
SKU 51790
Dlux Compact Offset Caps
Dlux Compact Offset Caps
Dlux Compact Offset Caps
SKU 50953_BLK
Traxxas 8361 Shock Caps
Traxxas 8361 Shock Caps
Traxxas 8361 Shock Caps
SKU TRA8361

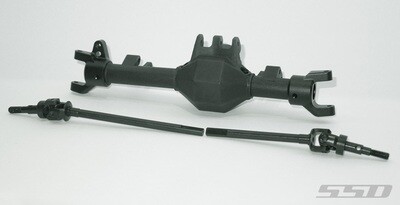

SSD Offset Front Axle Housing with Shafts, Trail King
