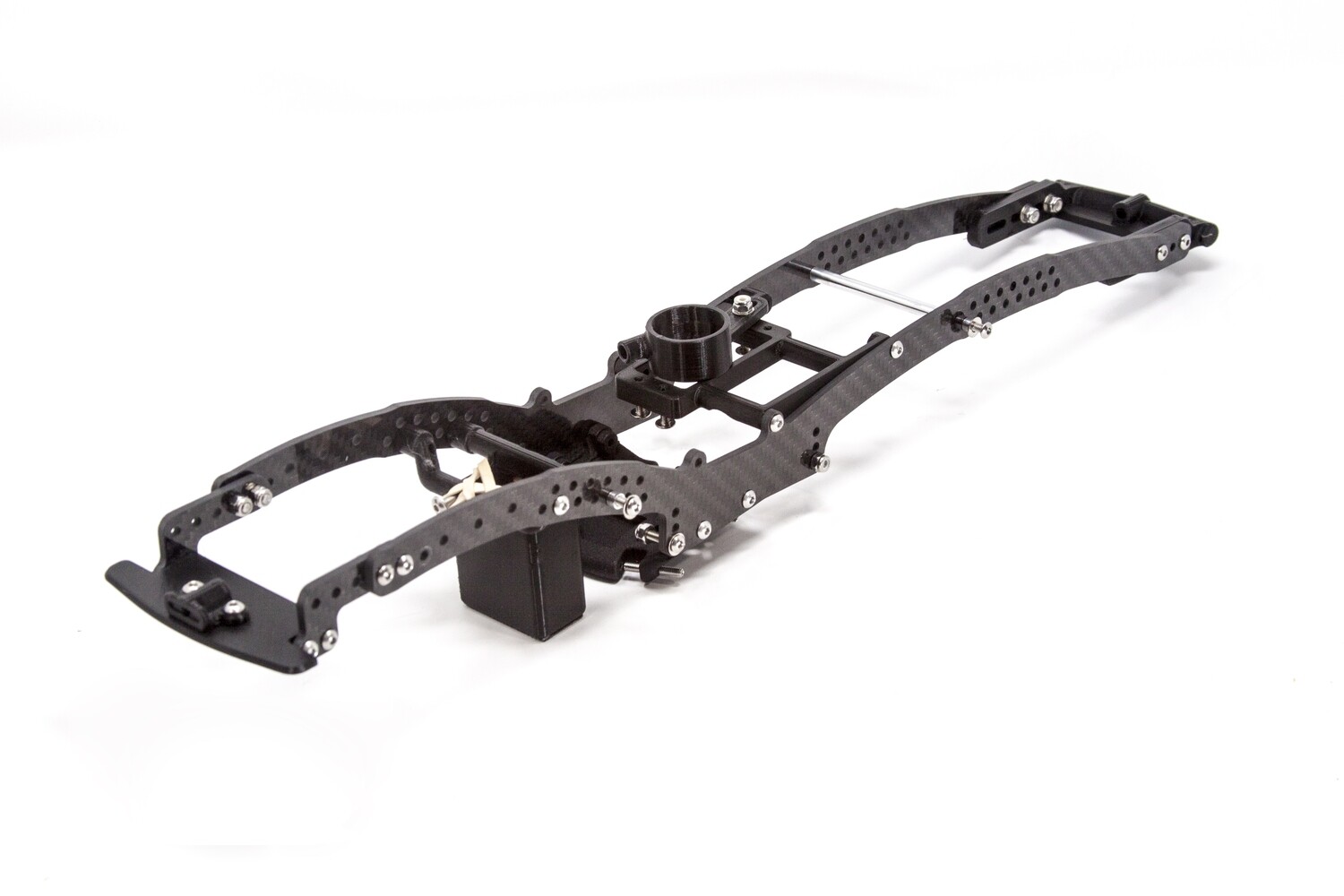

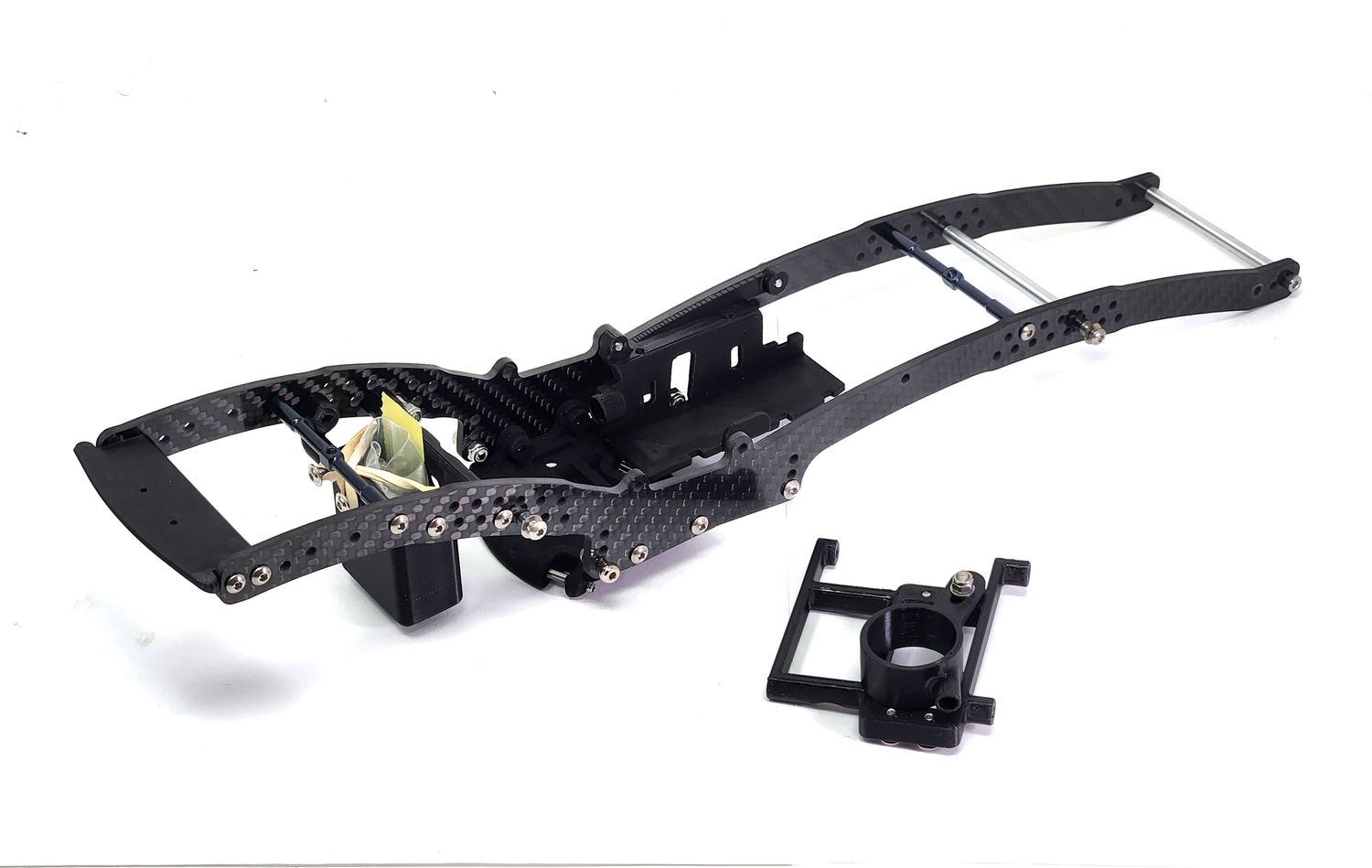

Dlux Nessie Scaler Chassis

Our first entry into competitive WRCCA Performance Scale and SORRCA class 2 & 3 scale-truck chassis.

The Nessie took multiple podium spots at its first ever national event, Crawlapalooza 2022, despite being just a couple of weeks old.

Designed around the Dlux OD-3 and Fargo transmissions, this will not fit universal skidplates using standard 38mm mount spacing.

With maximum break-over, ideal front weight bias, and lowest CG in mind, the Nessie was designed to have the best performance possible.

Nessie comes assembled including:
(2) chassis rails
(1) front bumper with fairlead
(1) battery tray
(1) skidplate for OD-3 trans
(1) servo winch mount w/ spool hat
(1) rear chassis brace
(1) rear bumper
(2) body mounts

Optional parts:
8 piece link kit (includes rod end and balls) for 4-link front and rear
approx 13" wb for c2, 13.5" wb for c3
Right- or Left-motor OD-3 transmission

Recommended add-ons:

Both:
Standard length cut-to-length driveshaft front
Extrra-long (+30mm) cut-to-length driveshaft rear

Class 2 build:
Ultra-short shocks front, with med springs
Ultra-short shocks rear, with soft springs

Class3 build:
Ultra-short shocks front, with med springs
Short shocks rear, with med springs

****A million thanks to Adam Nerby at 149 R/C Werks for this amazing chassis design (with a few Dlux tweaks).****
