7mm FBA FRONT AR60 type Axle shafts
Home/Store/Axles/Axle Shafts/Axle Parts
Product Details

Now with a 2 yr warranty*!!!

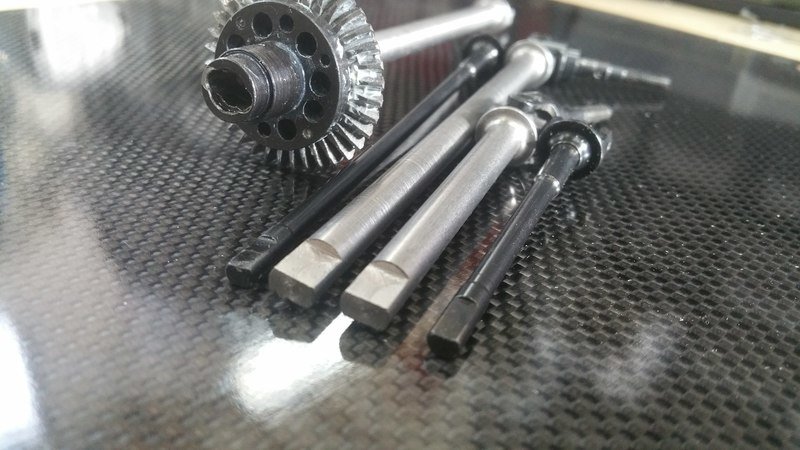

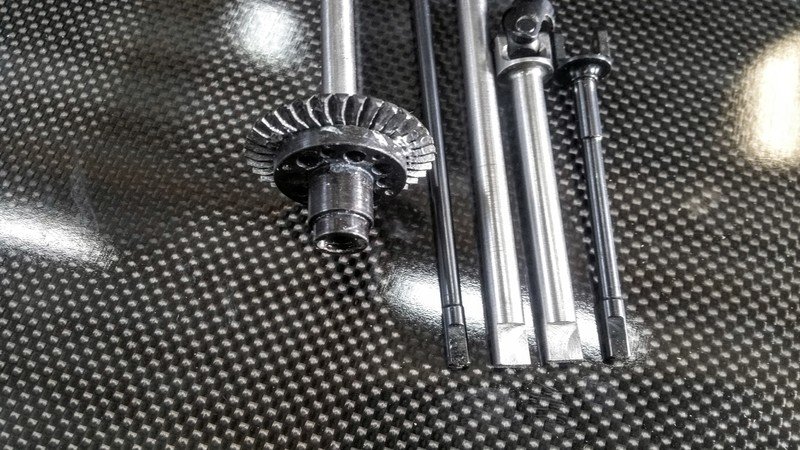

Front axle shafts made from 4140 hardened steel. These shafts are giant 7mm in diameter

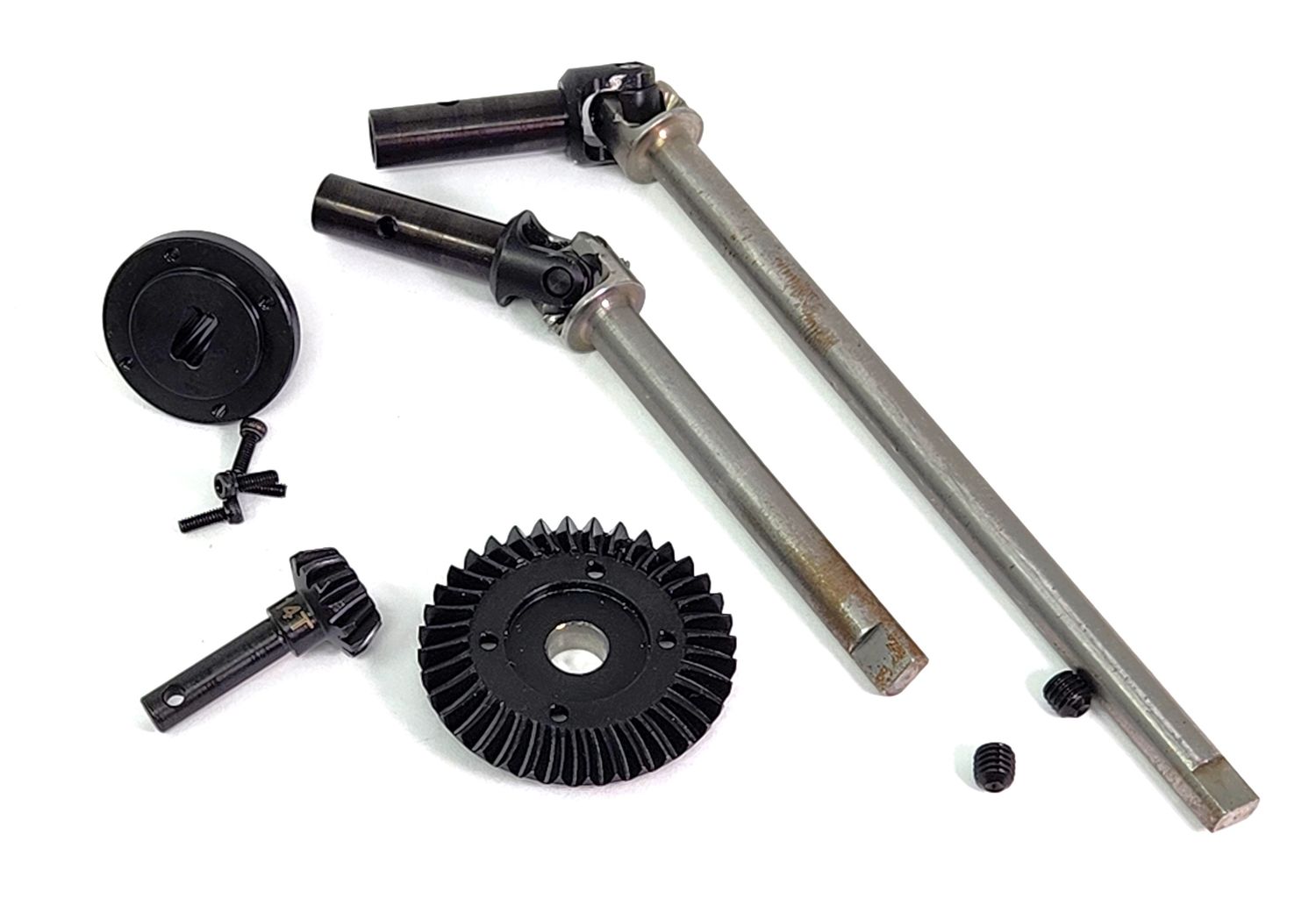

Comes with:
Axle shafts
Locker
Ring and pinion


You MUST use an aluminum housing to run these axles.

You MUST drill out the axle tube to fit these. The shafts measure approx .275" diameter so something like a 9/32" (.281) will work great if you're accurate enough or you might have to go bigger if you're not accurate.

If you want to send me your axles, I can have these fully assembled for you or I can just do the machining to make the parts work and you can assemble them.

The locker is tight on the non ring gear side. You will need to lightly tap in the shaft from that side.

Hubs are threaded for M3. If you use a wheel that uses a 4-40 thread, you will need some scale hardware so they will fit. I use these:https://lockeduprc.3dcartstores.com/M3-x-10mm-Scal...

Hub sizes are approx:


0 offset stainless approx 9.775"
225 offset approx 10.375"
350 offset approx 10.625"
475 offset approx 10.875"
600 offset approx 11.125"

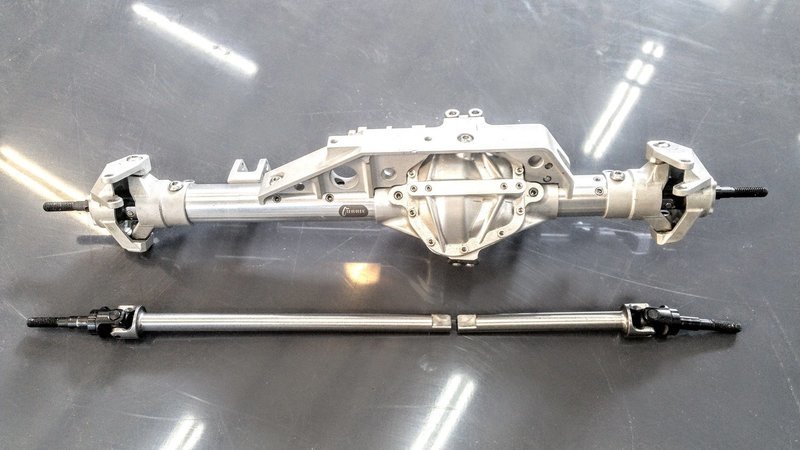

Buy Super Shafty housings and these parts drop right in with no mods. For all other housings, check the video below.

Super shafty housings:

https://supershafty.com/collections/axles-mods/pro...

Simple install. See video for more info

* Warranty valid for 2 years from original purchase date. Original purchaser only, non-transferrable. **Mechanical steering stops required, failure to use mechanical hard stops to prevent over-steering will void warranty.** Warranty coverage includes locker, inner shafts and 8mm stub shafts. Ring and Pinion, Axial stub shafts, universal joints and pins are not covered under warranty. Warranty does not include shipping cost. You must send parts to me for repair or replacement, and pay for return shipping.
