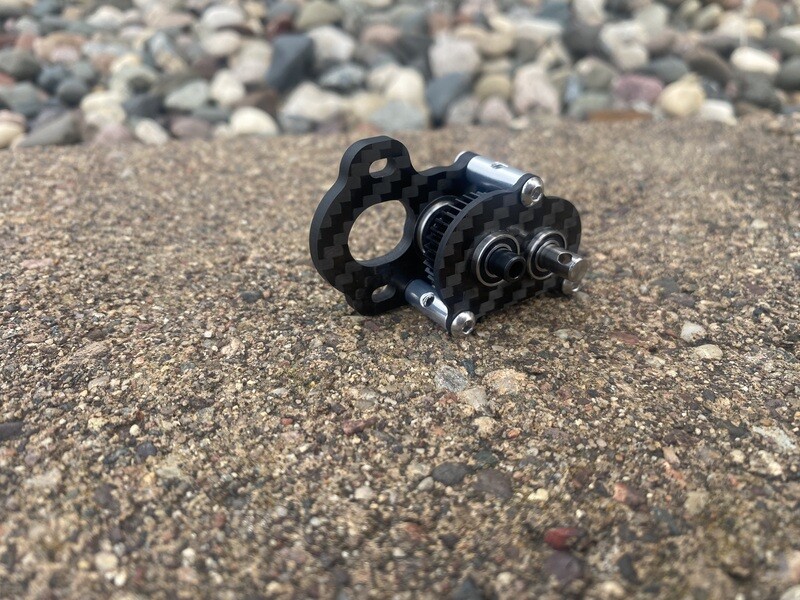

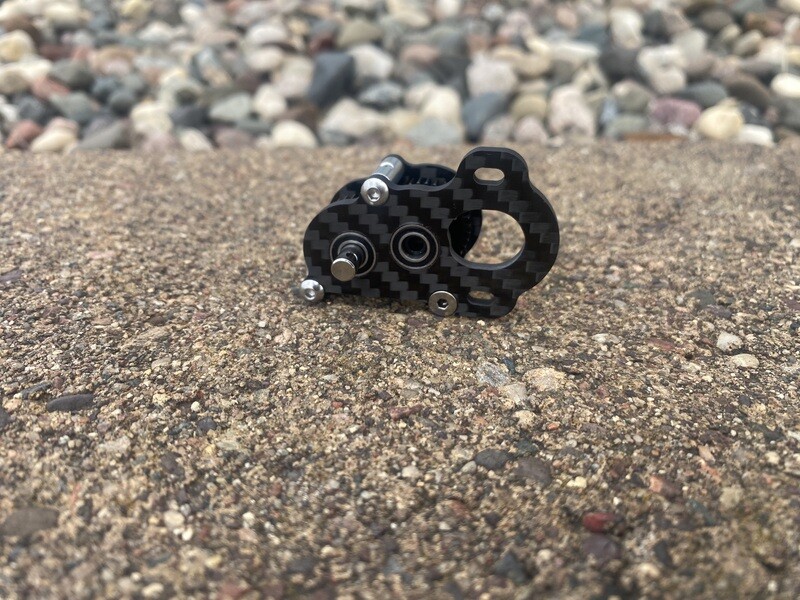

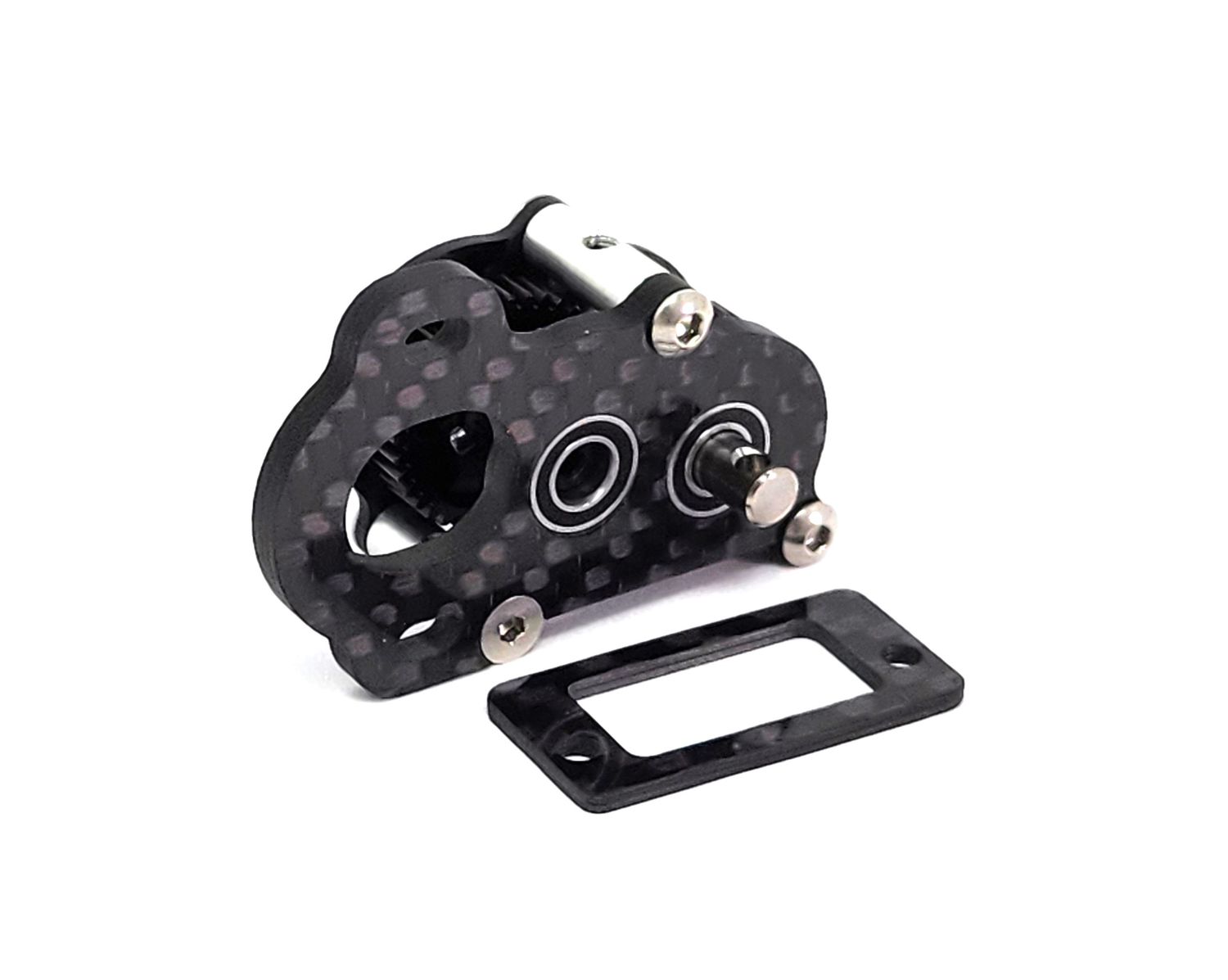

Ultra-light Portal Transmission
+4
+3
+2

Ultra-light Portal Transmission

Home/Store/Transmissions
SKU 51132
$135.00

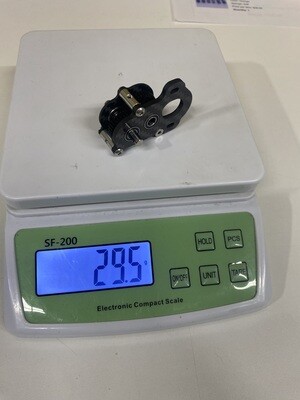

29.5g!!!
Left or Right Motor
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Ultra-light Portal Transmission
Home/Store/Transmissions
Product Details

***THE LIGHTEST TRANSMISSION IN THE WORLD***

Only 29.5g, and can be modified for even more weight savings

Tiny Transmission for portal axles (gearing is not sufficient for non-portal axles).

Forward facing motor with optional left or right side motor placement.

Hardened chromoly gears.

Titanium 5mm output shaft.

Dimensions: 52mm W x 34mm H x 21mm L (not counting output shaft)

Motor bolt holes 25mm on center. Skid plate mounting holes 28mm on center (M3 threaded holes).

Gear ratio 3:1 X pinon/spur combo. 36T spur gear (48 pitch).

Fits pinions from 11T to 18T (48 Pitch)

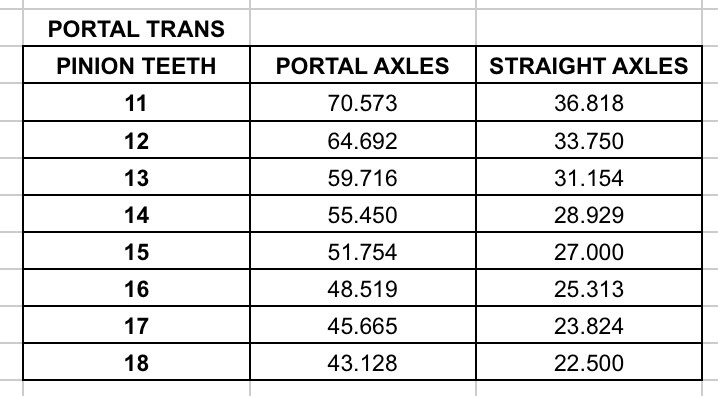

Gear ratio:

9T pinion: 12

10T pinion: 10.8

11T pinon: 9.8

12T pinion: 9.0

13T pinion: 8.3

14T pinion: 7.7

15T pinon: 7.2

16T pinion: 6.75

17T pinion: 6.35

18T pinion: 6.0

Chart above shows possible ratios using stock Axial portal and AR44 straight axle gears

****Fabrication required**** This is not a direct fit for any chassis except our Capra based Sporty. Often you can just drill and countersink two mounting holes, other times you can fabricate a simple mounting adapter plate.


Show More
You May Also Like

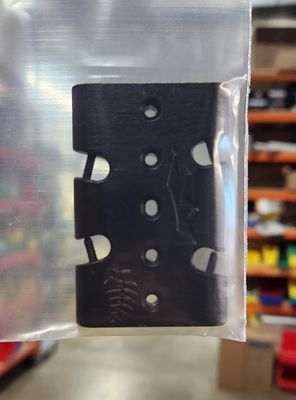

FCP Skid Plate for Dlux Portal Transmission
FCP Skid Plate for Dlux Portal Transmission
FCP Skid Plate for Dlux Portal Transmission
SKU 007457
Best Seller!
Dlux Short Shocks 92mm (Pair)
Dlux Short Shocks 92mm (Pair)
Dlux Short Shocks 92mm (Pair)
Premium 92mm shock absorber.
SKU DLX-58092-GRN
Crawler Innovations 2.2”; 1.50” WIDTH; ORANGE 6 BOLT WHEEL PAIR CWR-5025
Crawler Innovations 2.2”; 1.50” WIDTH; ORANGE 6 BOLT WHEEL PAIR CWR-5025
Crawler Innovations 2.2”; 1.50” WIDTH; ORANGE 6 BOLT WHEEL PAIR CWR-5025
SKU CWR-5025

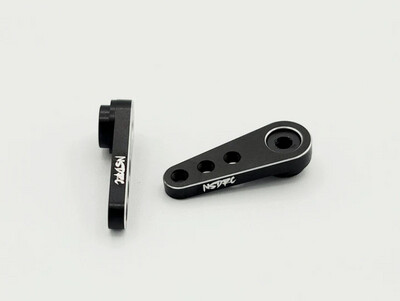

NSDRC Monster Servo Horn 20mm
