SSD Offset Front Axle Housing with Shafts, Trail King

Pro44 Portal Rear Axles

SSD SCX10 II Pro44 Portal Rear Axle.

Features:

• Scale design and assembly
• Injection molded nylon main housing
• Removable diff cover
• Same size as stock SCX10 II AR44 axle
• Same link mount locations as stock SCX10 II axle
• Compatible with stock SCX10 II axle gears and bearings
• Fit stock SCX10 II AR44 axle lower link mounts
• Injection molded nylon portal housings
• CNC machined, hardened steel gears
• CNC machined, hardened steel axle shafts
• Large 13mm bearings
• Fit stock SCX10 II wheel hex
• Direct fit onto SCX10 II chassis
• Increase ground clearance by 12mm
• Increase track width by 23.4mm (11.7mm each side)
• Portal box upper and lower gears can be reversed to change the gear ratio
• Fit all SSD 1.9 wheels
• Matching portal knuckles are available (SSD00220)

Specifications:

Gear ratio: 1.14:1 (14T:16T)

Axle width: 213mm (8.4") hex to hex

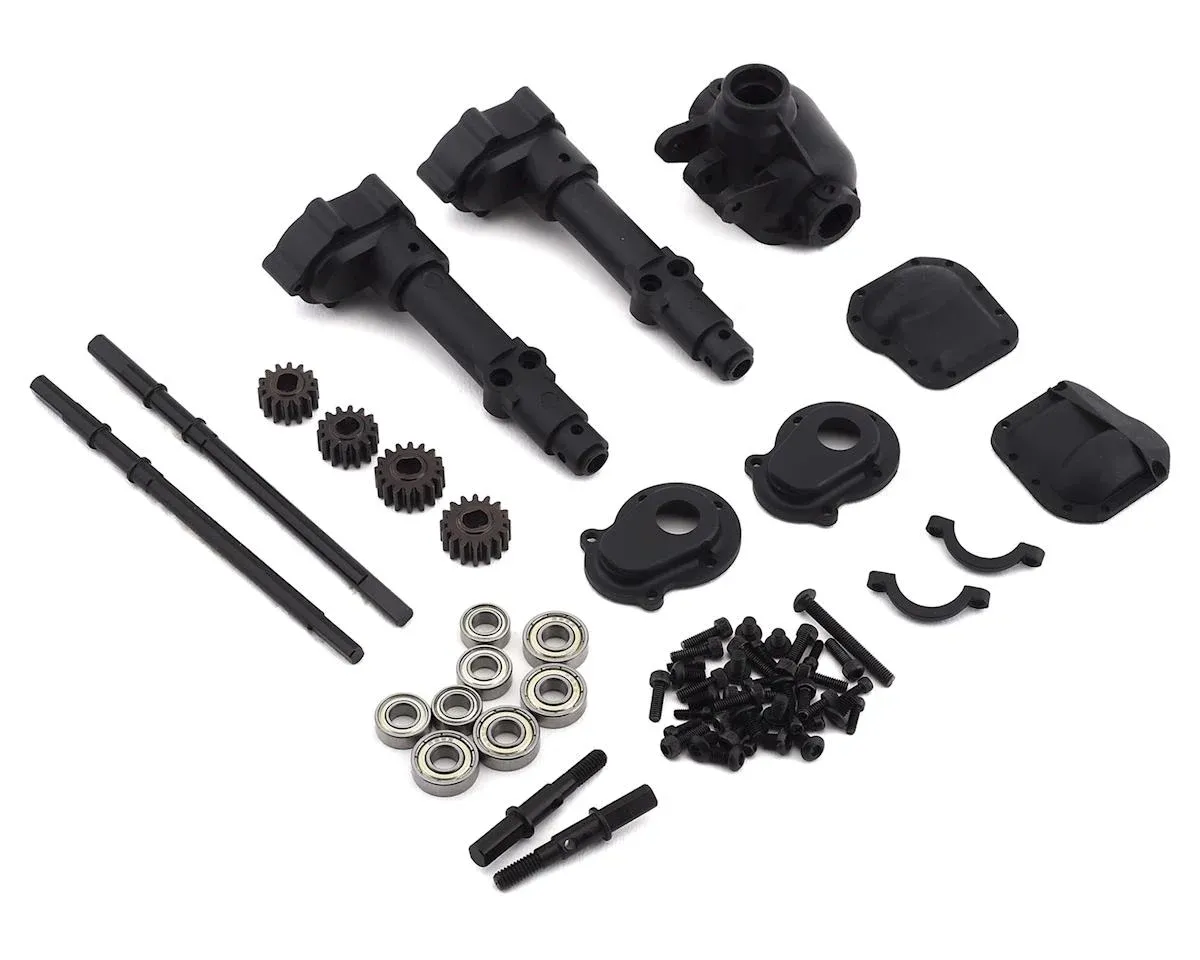

Includes:

• Pro44 Center housing
• (2) Bearing holders
• (2) Diff covers
• (2) Axle tubes
• (2) Portal housings
• (2) Portal covers
• (2) Rear axle shafts
• (2) Stub axles
• (2) 32P 14T Steel gear
• (2) 32P 16T Steel gear
• (4) 5 x 13 x 4
• (2) 5 x 11 x 4
• (2) 5 x 10 x 4
• (10) M2 x 5mm cap head
• (14) M2.5 x 8mm cap head
• (8) M3 x 5mm button head
• (2) M3 x 4mm button head
• (1) M3 x 25mm button head
