Redcat Ascent AMS LCG kit

A complete LCG kit for your Redcat Ascent!

This kit will substantially lower your center of gravity by mounting the servo on the axle. When mounting the servo on the axle we also include links to convert it to a 4-link front end. the motor is moved slightly inward and lower to make space for the servo. with moving the motor the prop shaft needs to be replaced with the included Dlux Slim driveshaft. Included are new grade 5 titanium steering links.

We also gained you much more steering angle from the included bent tie rod and a little dremel work.

This kit requires some trimming; you will need to trim off the front upper link mounts. Also, the slip side of the driveshaft will also need to be slightly trimmed to fit. Lastly trim your steering stops until the tie rod ends touch the C hubs.

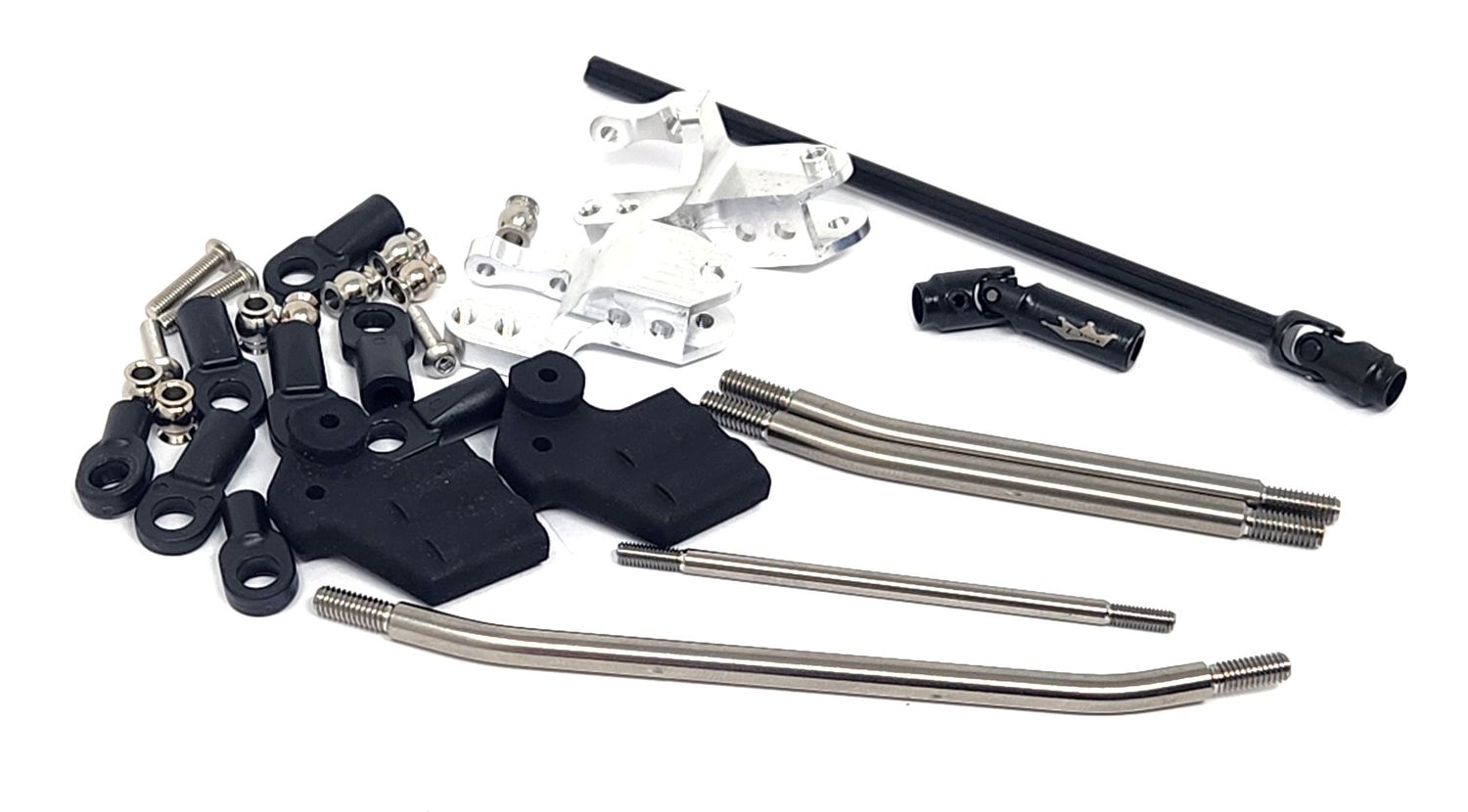

This kit included;
1-pair of servo/upper link mounts
2- motor plate brackets
1- slim driveshaft
2- Upper links
1- Tie-rod/drag link set
Hardware for installation
