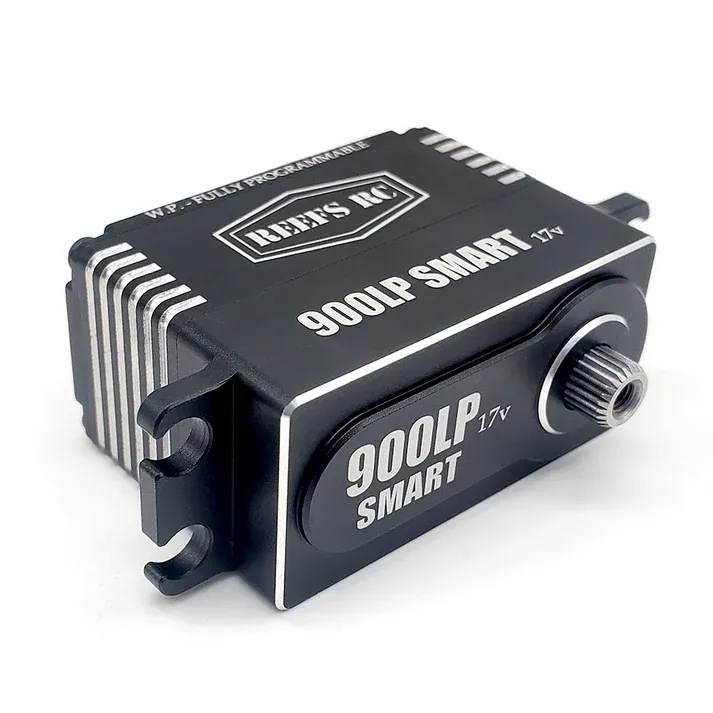

REEFS 900LP SMART 17V Brushless Direct Power Servo
SKU REEFS186
$179.99
In stock
1
Save this product for later
REEFS 900LP SMART 17V Brushless Direct Power Servo
Product Details
It looks like you are gearing up to the next level is servo power!
Before adding that Reef 900LP Servo to your cart, check out Exocages' video on YouTube is definitely a smart move. You’ll get a clearer idea of all the components and steps involved, plus ensure you're fully prepared to make the most of the direct-powered servos.
WARNING!!: Does not work with Rhino ESC Systems! We recommend Holmes or Vt3k ESCs.
Recommend "true"+1200mah +100C battery or more, with an external Zener Diode (included).
The 900LP SMART brushless servo really has it all! Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!
Ready to utilize for your next setup!
This thing is insane!
NOTE: NOT RECOMMENDED TO USE WITH RHINO ELECTRONICS
SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- SMART - Comes as SERVO out of the Box. Easily switch to the preprogrammed WINCH Controller mode with the REEFS LINK*
- IP67 Rated WATERPROOF: 7 Point Seals
- Military Grade Construction
- Internal Steel Gears / All CNC Aluminum Casing
- 4-Pole Brushless Motor
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Bearing Type: 2 Ball Bearings / Weight: 2.3oz / 66g
- Voltage: 10V-17V
- Torque: 710oz (53kg)@12.6v / 810oz (59kg)@14.4v / 920oz (66kg)@16.8v
- Speed: .10sec @12.6v / .09sec @14.4v / .08sec @16.8v
- Dimension: 1.6 x .79 x 1.16 (LWH) / 40.8mm x 20.2mm x 29.5mm
- Spline: 25T
- Dead Band Width: 2μs
- For added performance, we recommend the REEFS 8.4V EZ-BEC
- FULLY PROGRAMMABLE with BUILT IN PREPROGRAMMED WINCH CONTROLLER (the USB Link is required to switch servo to winch mode)
Unload Current:
320mA@10.0V
380mA@11.1V
480mA@12.6V
530mA@14.4V
630mA@16.8V
Load Current:
4300mA@10.0V
4800mA@11.1V
5800mA@12.6V
6500mA@14.4V
7500mA@16.8V
It is mandatory to ensure your BEC can meet the servo’s loaded current demand. Failure to do so will void warranty. Recommended: REEFS 8.4V EZ-BEC
For programming, the USB Link is required.
Item #REEFS186
