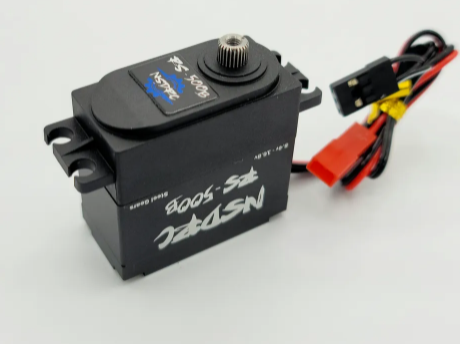

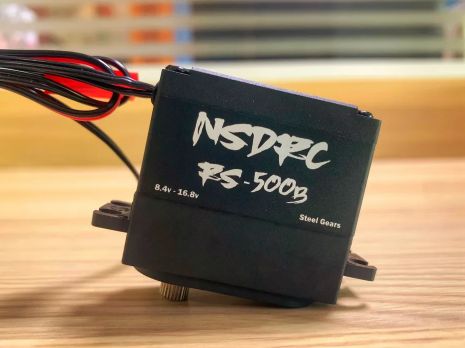

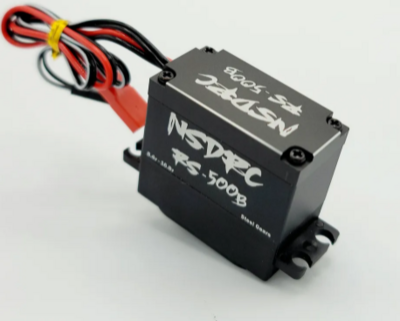

NSDRC RS500B High Performing Budget Servo

Nsdrc RS500B High Performance Budget Servo

Our budget minded servo that's still packed with performance as usual! Stronger, faster, and more durable than others in its class!! Direct power, 8.4v - 16.8v capable, no extra wiring and costs of a bec in order to get full power. Hardened stainless steel gears, with steel post caps in the top composite case. The top case is a hardened composite, with aluminum middle and bottom case!

Torque / Speed specs
8.4v - 310oz/ 22kg @ .15
12.6v - 430oz/ 31kg @ .12
16.8v - 520oz/ 38kg @ .09

• Direct power 8.4v - 16.8v

• 25T Spline
• Composite top case with cnc aluminum middle and bottom case.

• Weight 68g

•Wire Length: 300mm

• Water resistant, 7 point O-ring seals, full conformal coated internals. Still not recommended to Submarine...
• Hardened stainless steel gears

☆We highly recommend using direct solder connections for best results.
☆The power connection plug, or power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery!
