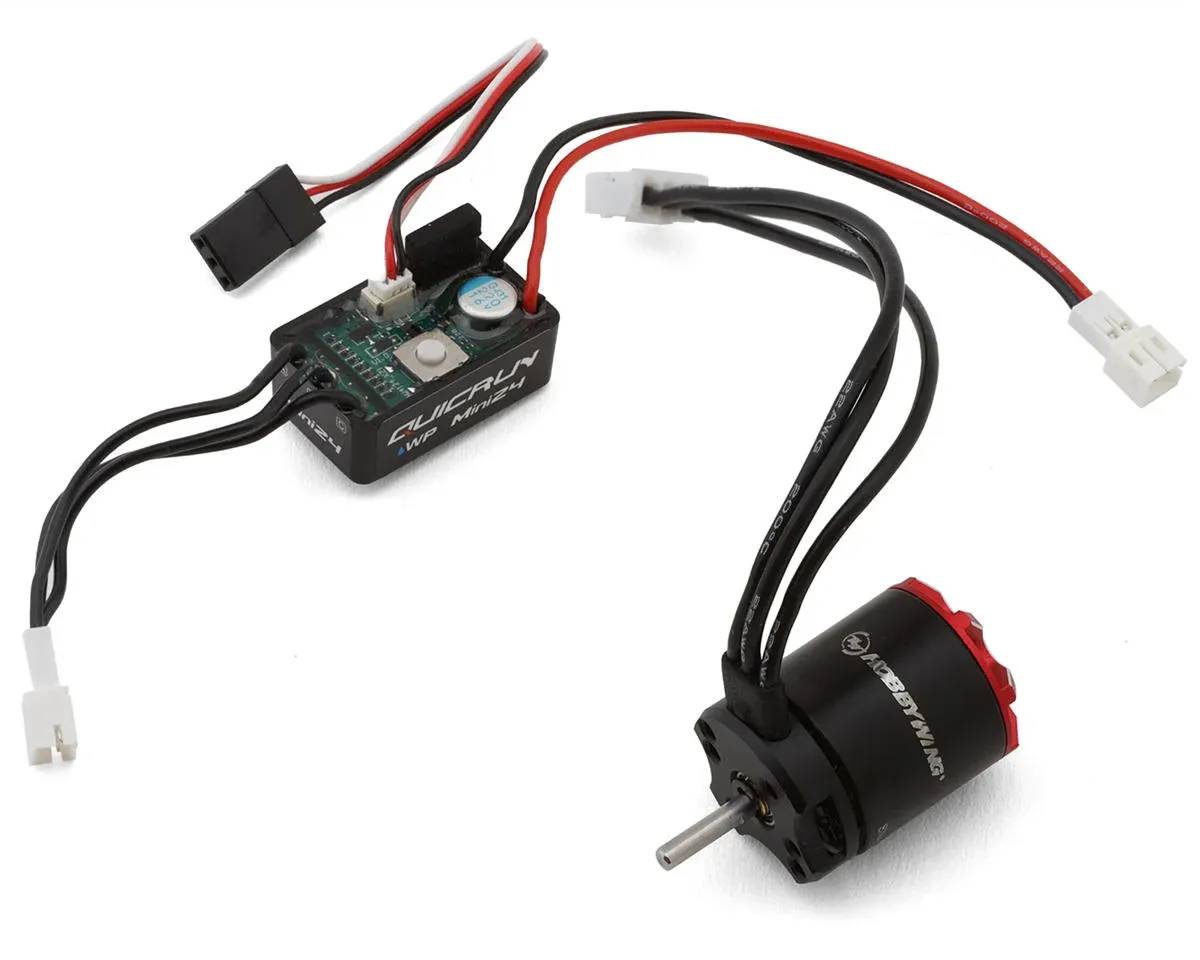

Hobbywing Quicrun Mini24 Waterproof Brushless ESC Combo w/1621SL (3500Kv)

Combo Overview:

This is the Quicrun Mini24 Waterproof Brushless ESC Combo from Hobbywing. Featuring a fully waterproof design, this ESC supports both sensorless brushless motors and brushed motors, offering versatile performance across various RC setups. Paired with advanced protection features and adjustable drag brake force, it ensures reliable and smooth control in all conditions. The included Quicrun 1621SL Outer Motor delivers excellent low-speed control and torque, making this combo ideal for 1/24 rock crawlers where precision and smooth operation are key to conquering rough terrain.

Features:

• Supports sensorless brushless and brushed motors
• Fully waterproof for all-weather reliability
• Switchable BEC voltage for high-torque servos
• Multiple protection features for enhanced safety
• Real-time drag brake adjustment via AUX channel

Specifications:

• Motor:
  • Suggested Application: 1/24 Crawler
  • Size: 1621SL
  • Type: Brushless Outrunner
  • Voltage: 2-3S
  • Adjustable Timing: No
  • Watts: 39.1
  • Connector: -
  • Dimensions: 0.62x0.83in (15.8x21mm)
  • Shaft Diameter: 2.0mm
  • Weight: 0.59oz (16.7g)(with wire)
• ESC:
  • Suggested Application: 1/24 Crawler
  • Motor Type: Sensorless Brushless/Brushed
  • Input Voltage: 2-3S LiPo
  • Continuous Current: 25A
  • Peak Current: 60A
  • Dimensions (LxWxH): 0.03x0.018x0.012in (28.1x17.9x12mm)
  • Weight: 0.38oz (10.8g)
  • Motor Limits: Brushless (1621/1212/1806) or Brushed (050/130/180)
  • BEC Voltage: 6/7.4V adjustable
  • BEC Current: 2A
  • Motor Connector: -
  • Battery Connector: -
  • Throttle Wire: Servo Wire
  • Programming: Button / Remote Program Box

Includes:

• (1) Quicrun Mini24 Waterproof Brushless ESC
• (1) Quicrun 1621SL Outer Brushless Sensorless Motor
