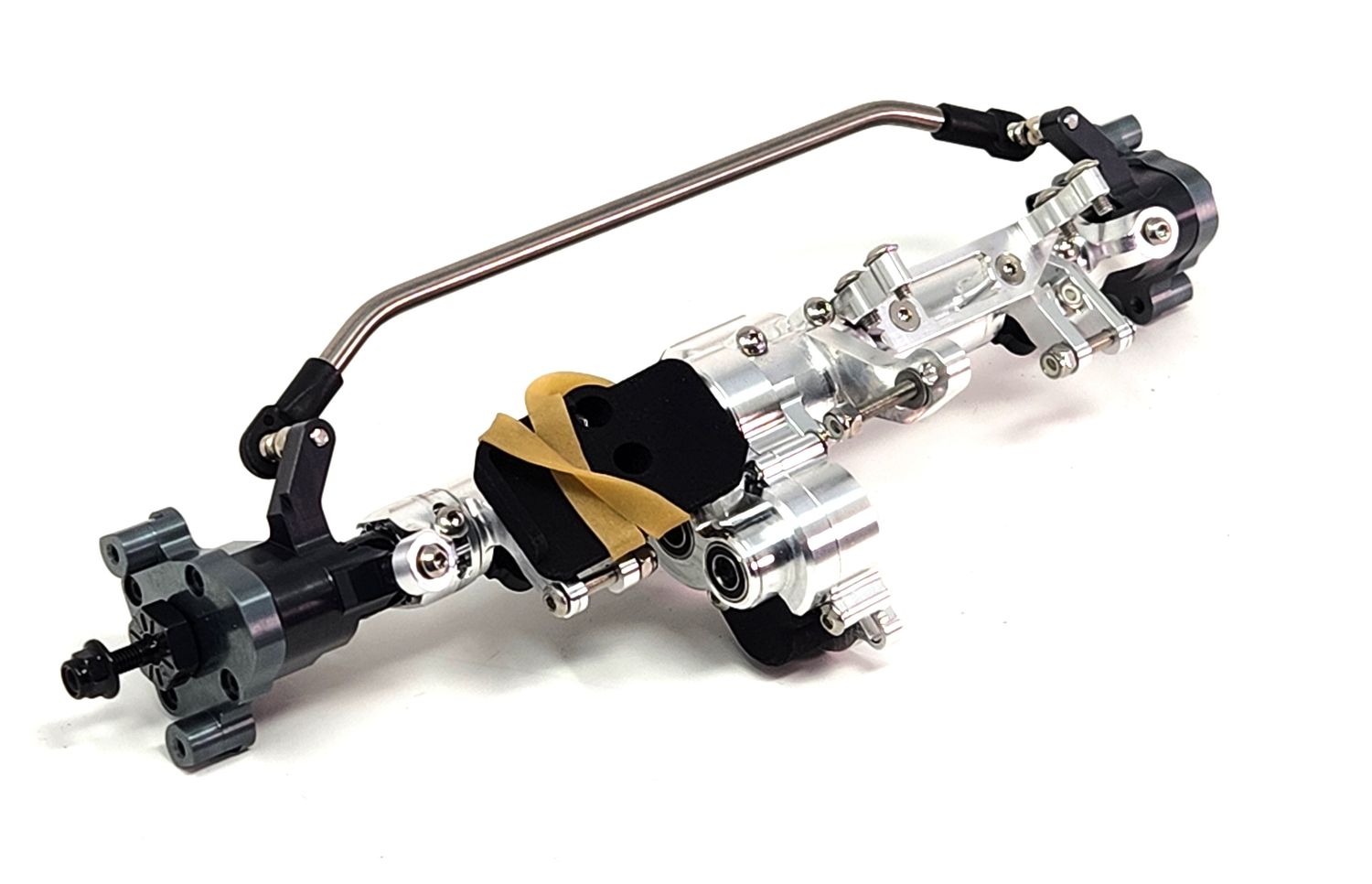

DluxR10 Front Portal Axle

DluXR10 Portal MOA Front Axle assembly:

High ground clearance.

Plastic bottom for easy sliding over rocks.

7075 aluminum topper for extreme strength.

7075 aluminum gearbox and link mount.

Snug fit gearbox with increased ground clearance when using smaller motors. Also leaves extra room for links, shocks, etc...

7075 aluminum link mount with 3 mounting holes to adjust your anti-squat to your liking.

Heat treated alloy steel axle shafts with 8mm outputs for the ultimate in strength and weight savings. No axle nuts to come loose.

Dlux Portal knuckles, Choose from heavy brass or light aluminum with pegs for LD weights

Injection molded lower housing.

Heat treated alloy steel gears and gear shaft.

Large bearings to handle extreme shock loads and keep the gears in perfect mesh. The smallest bearings are 5x10x4 and 5x11x3.

Versatile battery tray fits all popular sizes of batteries.

Based on the discontinued Axial XR10 axle with all the right improvements.

Hex to hex width: 9 1/4"

Recommended motor/pinion combo examples:

1800KV Stumpy motor, 11T pinion, 4S battery

1800KV Stumpy motor, 13T pinion, 3s battery
