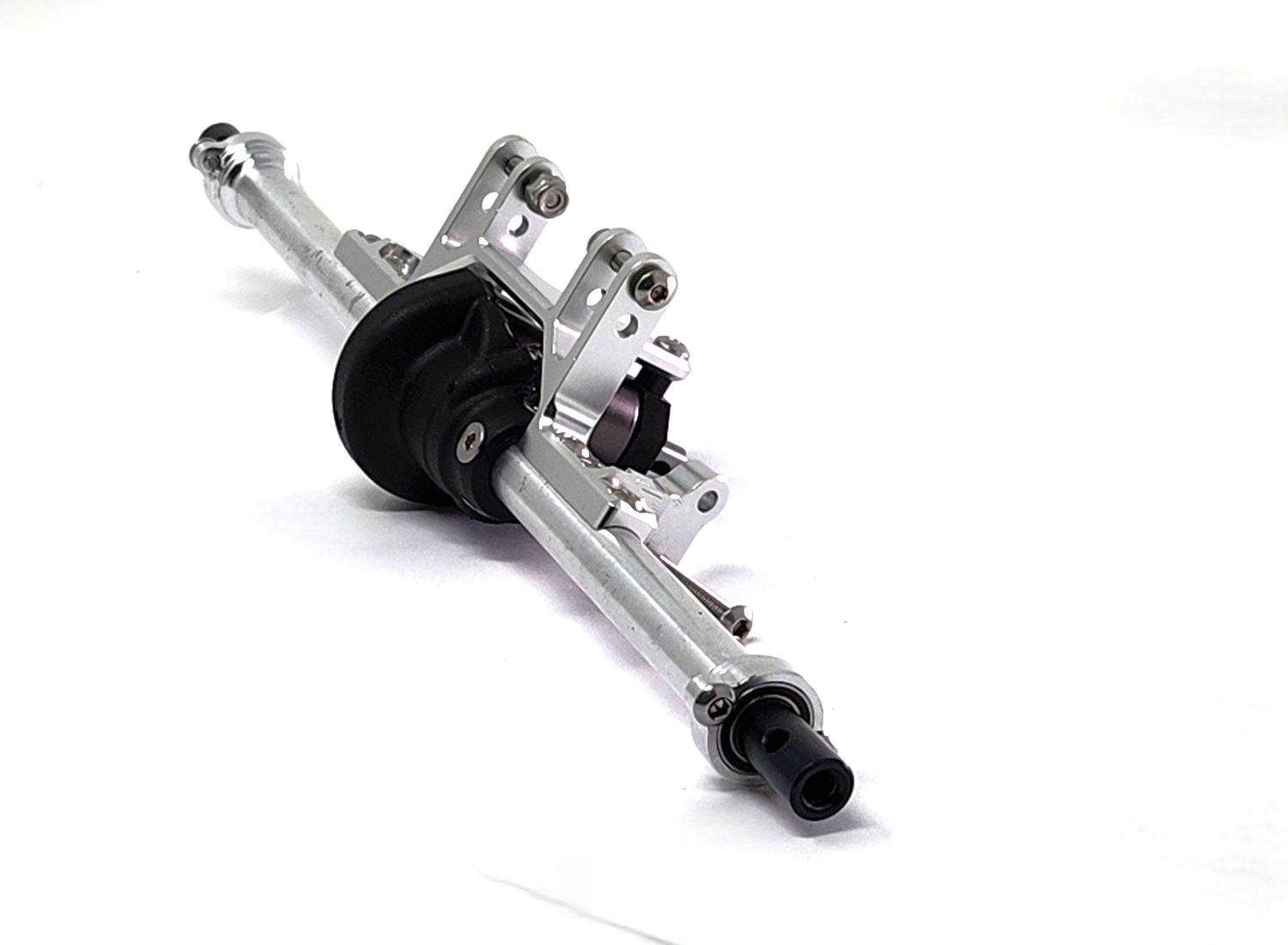

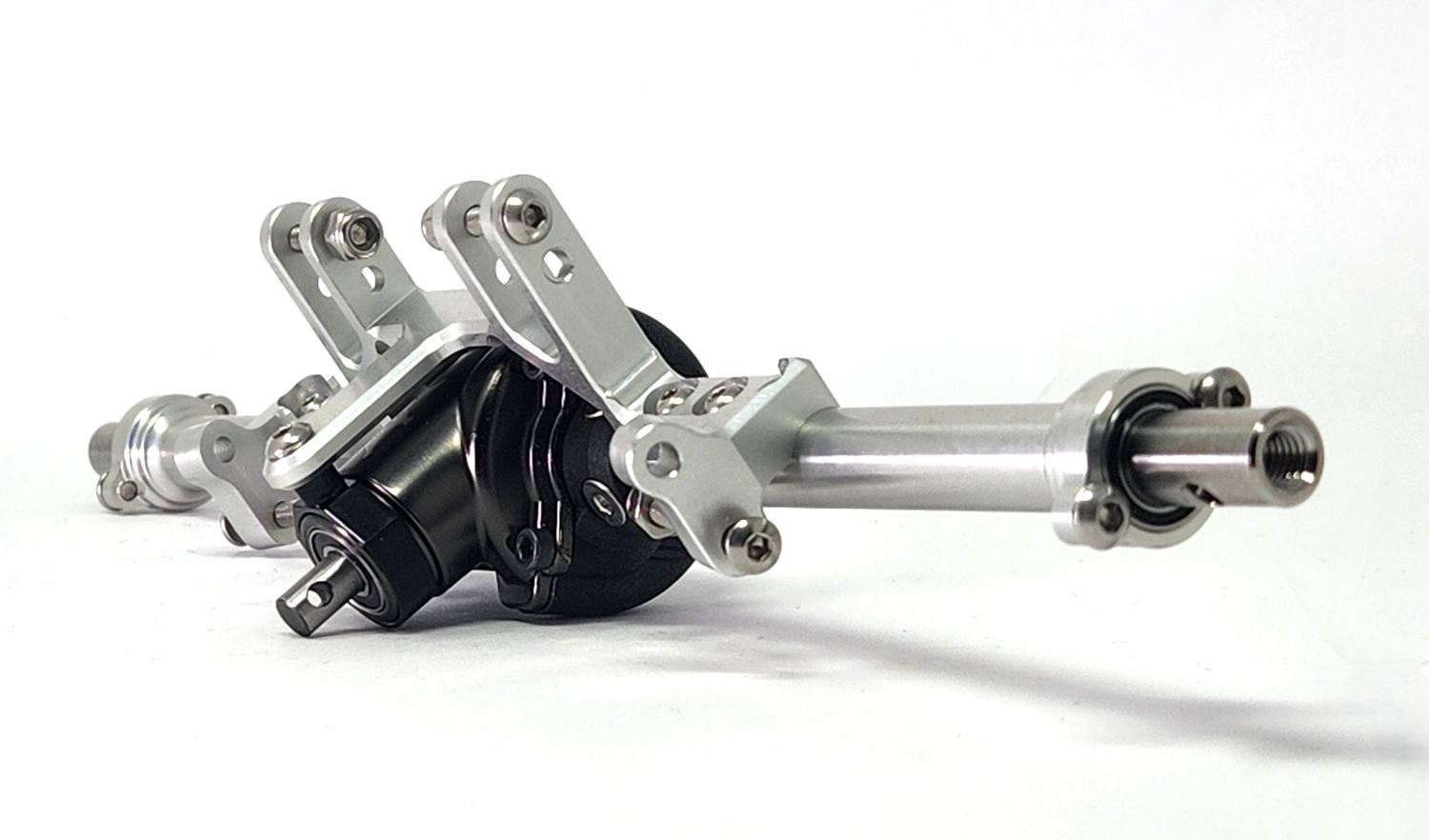

DX44 Wide Rear Axle

Home/Store/Axles/Axle Shafts/Axle Parts

Product Details

All new DX44 Wide rear axle.

Dx44 High Clearance center section

7075 Aluminum Tubes

Grade5 Titanium shafts

7075 axle truss with integrated link mounts

XR10 width

Centered Differential Only.

Vanquish Ring and Pinion, your choice standard or under drive

-8mm stub shafts are 4.5mm grade 5 Titanium made for 3mm pins. Hubs sold separately. total weight 124g before hubs

-Axial type shafts are 4.5mm grade 5 Titanium with oversized 6mm diameter at wheel hex and oversized 5mm threads. Most wheels fit with no modification, but on rare occasion wheel modification may be required to clear the 5mm threads.

	DX44 Wide rear 8mm		DX44 Wide rear Axial
Hub	Overall Width flat to flat	Hub	Overall Width flat to flat
Ultra Narrow	8-7/16in	6mm	8-1/2in
0.100 in	8-3/4in	9mm	8-3/4in
0.225 in	9in	12mm	9in
0.350 in	9- 1/4in	15mm	9-1/4in
0.475 in	9-1/2in	18mm	9-1/2in
0.600 in	9-3/4in	22mm	9-3/4in
0.900 in	10-1/4in
