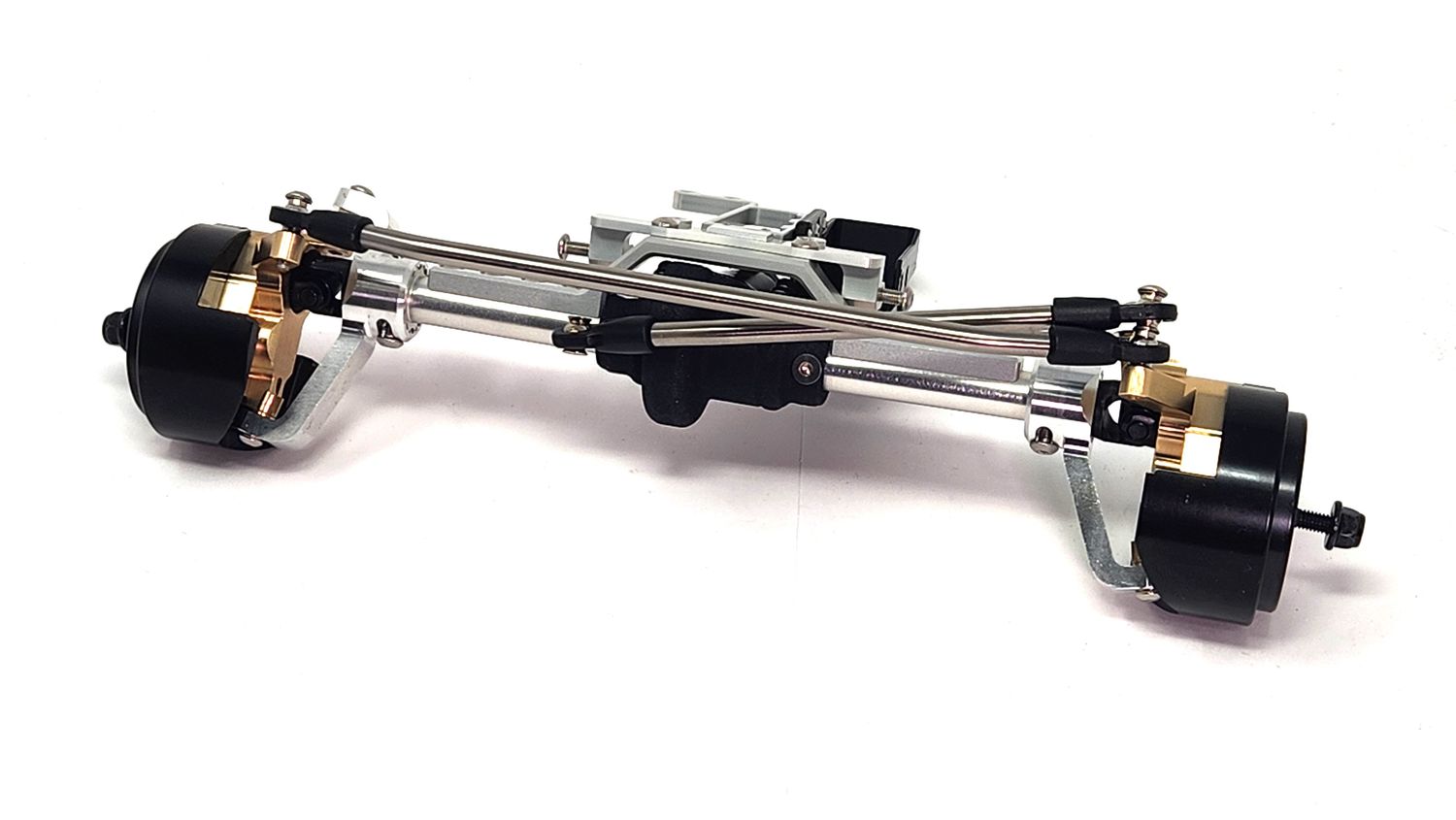

DX44 Portal Wide Front Axle (Capra Width)

The ULTIMATE portal front axle!

Increased ground clearance!

Clockable C Hubs for caster adjustment!

60 Degree steering!

High clearance DX44 Center section

High clearance 7075 tubes

Aluminum truss with integrated link/shock mounts

Dlux high strenth lightweight portal gears, 12/23 stock ratio

Dlux high strength chromoly axle shafts and stub-shafts

Vanquish 30/8t ring and pinion, stock ratio

Includes wheel hexes and nuts

Direct drop in replacement for Axial Capra front axle. Some chassis designs may require modifications to clear the behind the axle servo and battery. For example: bent lower links instead of straight, and spacers between upper links and axle.

8-11/16" wide hex-to-hex, approximately same width as a Capra front axle.

All axles include behind the axle servo mount and battery tray, also compatible with the stock Axial above the axle servo mount.

Scaler configuration includes:

36% Overdrive Portal Gears
Heavy Brass Portal Covers
Brass Knuckles
Standard ring and pinion

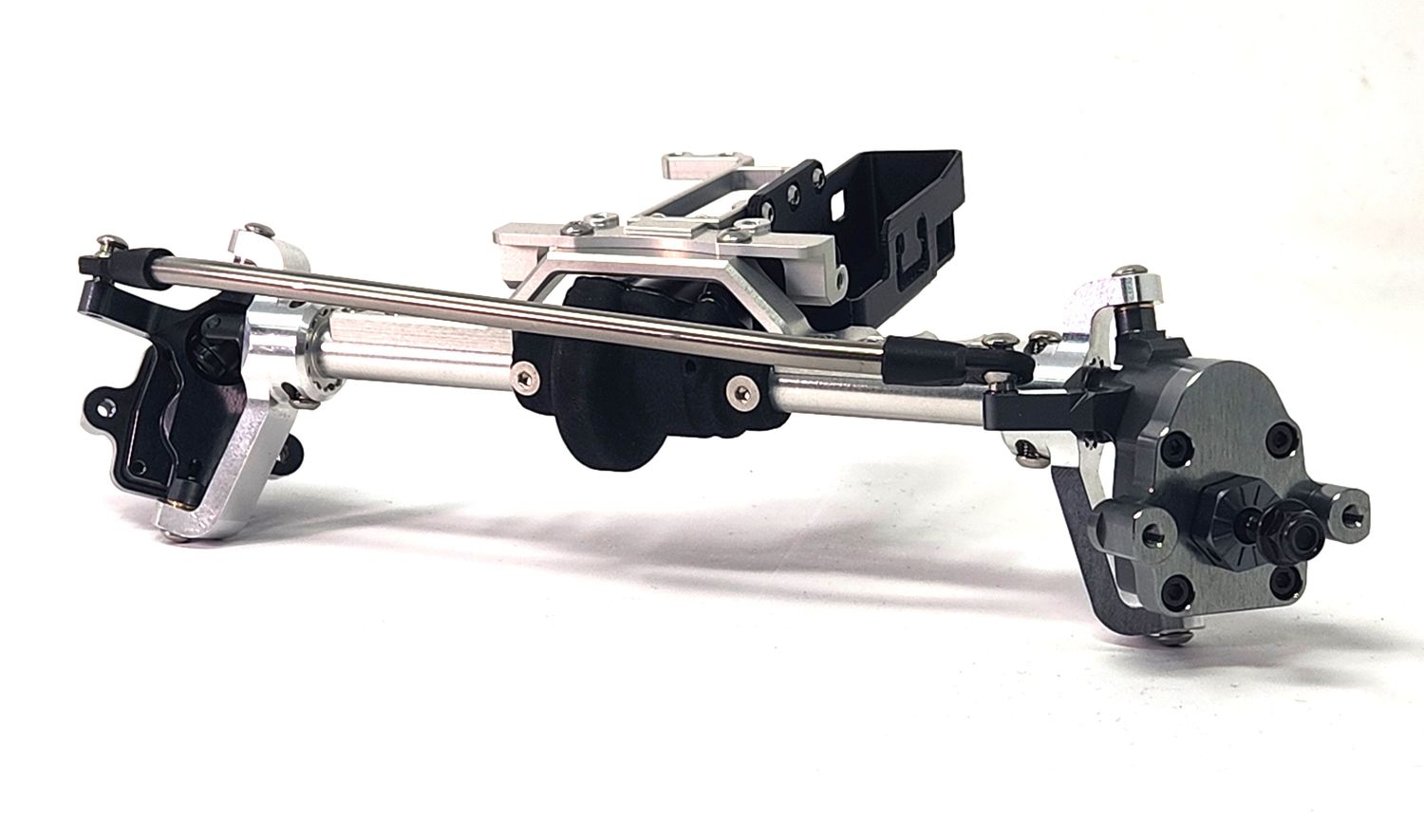

Sporty configuration includes:
36% Overdrive portal gears
Aluminum knuckles
Aluminum portal covers with pegs for loaded dice mount
Standard ring and pinion

Rear steer configuration includes:
Standard Portal Gears
Aluminum Portal covers
Aluminum Knuckles
Standard ring and pinion

SOLD PER AXLE
