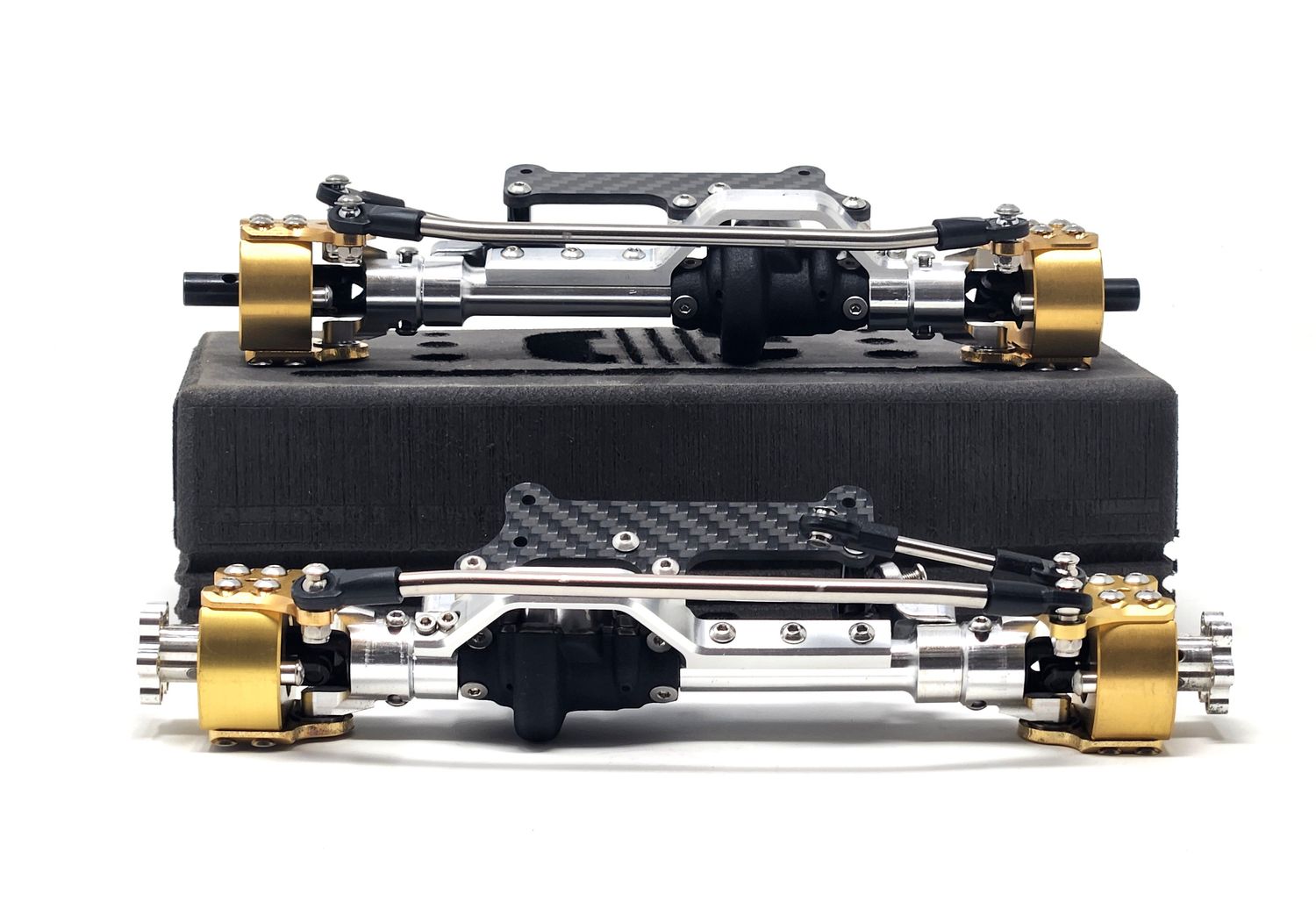

DX44 FRONT Axle
Home/Store/Axles/Axle Shafts/Axle Parts
Product Details

Features:

***NEW*** DX44 high-clearance center section, offset for maximum ground clearance
AR44 width, perfect for class 2 builds (approx 4mm wider than stock AR44)
7075 aluminum tubes with splined positive locking C hub engagement (adjustable)
Billet aluminum truss removes nearly all twisting and bending loads from the center section
Your choice of Overdrive or Stock gears
Titanium steering links included
Integrated carbon fiber servo mount places the servo extremely low for the lowest possible center of gravity
Dlux Knuckles (Brass or Aluminum)
Dlux FBA shafts

Choose either Axial stub shafts or 8mm stub shafts.
Axial stub-shafts are approx. 7-9/16" wide hex-to-hex
8mm stub shafts with .225 hubs give a WMS (wheel mounting surface to wheel mounting surface) width approx 8.75".
0* C Hubs (king pin inclination)
Comes with full brass or Fill brass with slugs.

Left drop will have the differential offset to the left side.
Right side drop will have the differential on the right side.

  • Does not come with wheel hexes or hubs, but you can buy them here: https://dluxfab.com/Wheel-hubs-hexes-8mm-stub-shaf...
  • Requires 21mm or shorter compact servo horn (20mm recommended)

SOLD PER AXLE
