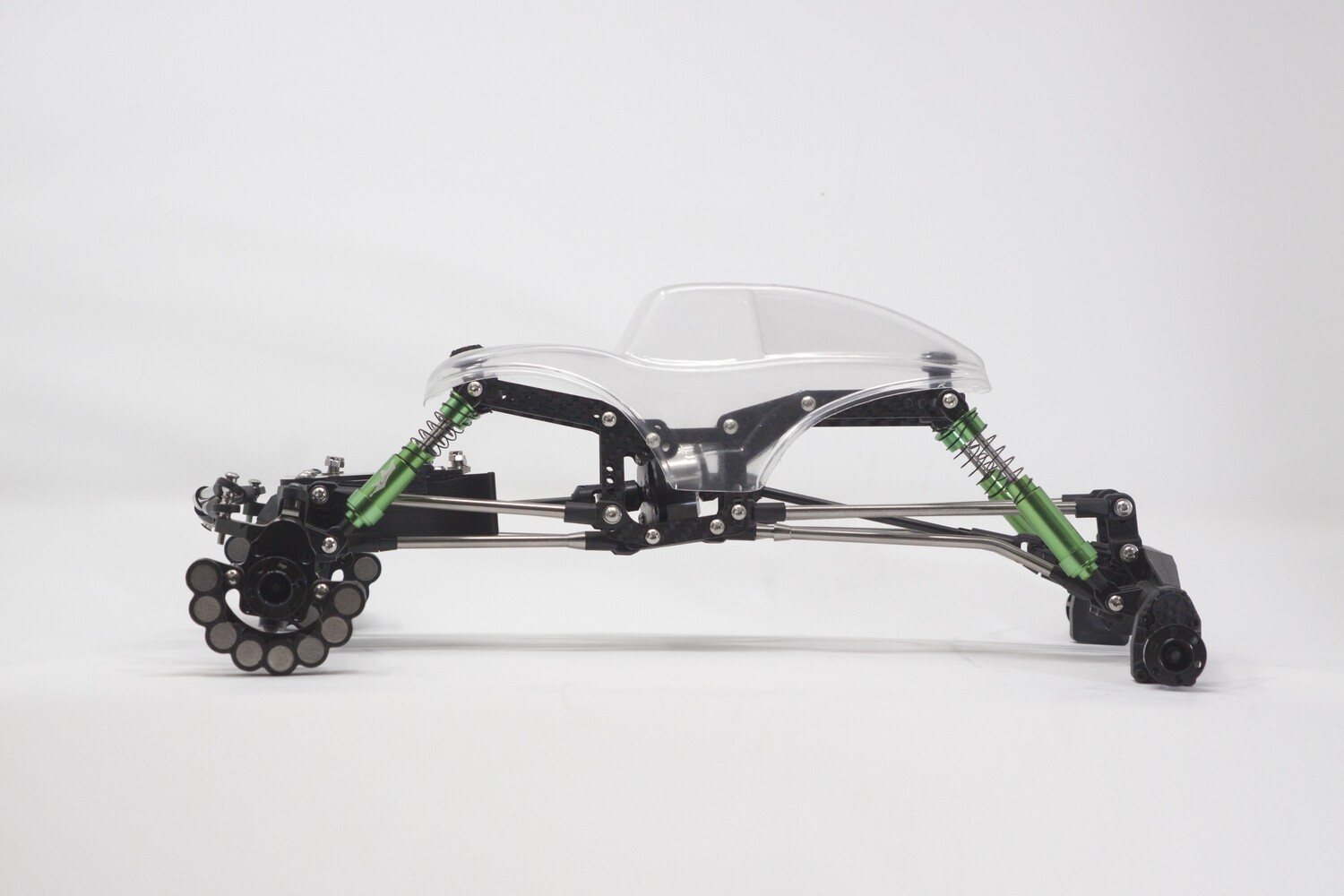

Asylum Sporty Kit Car
Product Details
Dlux Asylum Sporty:
You asked for it, we delivered. By popular demand, we have taken the guesswork out of building a competition ready WRCCA Sportsman class R/C crawler. This is everything you need to build a complete Sporty (AKA Shafty) rig.
Features:
Carbon Fiber Chassis, or G10 if ordered in custom colors.

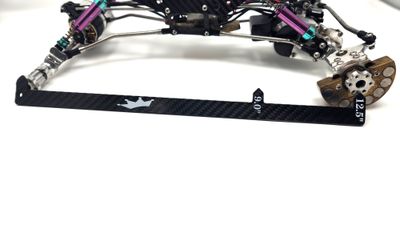

Forward biased angled belly skid for excellent breakover angle with a lower belly height.
Uber adjustable shock locations. Adjustable in height and angle.
Highly adjustable link geometry. Anti-squat and anti-dive are fully adjustable from mild to wild.
Tiny, lightweight, Left motor Portal transmission with hardened steel gears, aluminum housing, and titanium output shaft.
36% Overdriven front axle
Capra F9 portal axles with with hardened steel portal gears front and rear.
Dlux big bore 80mm front shocks, 92mm rear shocks. This gives well controlled articulation, and limits chassis lift on super steep climbs. Enough suspension articulation to keep the tires firmly planted on the ground, but not enough to drop into deep holes and flip you over.
Axle mounted, LCG (Low center of gravity) servo and battery mount.
Includes:
Asylum Chassis kit with ALL the options!
Complete Front and Rear Axles, upgraded with Dlux portal gears and 36% overdrive.
Dlux alum knuckles and portal gear covers, ready for loaded dice weights (brass optional)
Grade 5 Titanium suspension and steering links.
Dlux hardened steel driveshafts.
Lattice Innovations Mojo Body (unmounted, untrimmed, and unpainted), adjustable body mounts.
Aluminum wheel hexes and wheel mounting hubs (SLW type).
Optional Electronics Includes:
Buushless;
Dlux S2 ESC
Buushed;
Holmes Hobbies SHV650LP Servo and servo horn.
Holmes Hobbies Puller 400 13TXX brushed motor with 14T pinion.
Holmes Hobbies BR Mini ESC with XT30 Battery Connector. Email us if you want a different connector.
Radio and Receiver not included.
Ready to Run option:
Email us if you want a true RTR version with radio, receiver, painted body, etc...
Specifications:
Width: 10.7" (will vary based on tire/wheel selection)
Wheelbase: 12.5"
Overall Length: 18.5"
Overall Height: about 6.5"
Ground clearance (under axles): over 2 1/8"
Weight: 4lbs 4 oz (1928g) fully loaded with knuckle weight, aluminum front axle, and ready to comp (excluding battery). This will vary a lot depending on your knuckle weight options and other factors.
Battery mount designed for Turnigy nano-tech 450mAh 3S 65C Lipo. Other batteries of similar size will fit. Maximum battery size; 15.5 (W) X 60 (L) X 40mm (H).
**Shock, belly skid, and chassis colors will not match each other, likely not even close.**
**Designed for competition use in the WRCCA Sportsman class, not legal for scaler competition use (SORRCA or similar).**
***Please understand that these kits are custom/hand made to order and average shipping time can be 3 weeks***
Link to assembly video here:
