The Missing Link locker

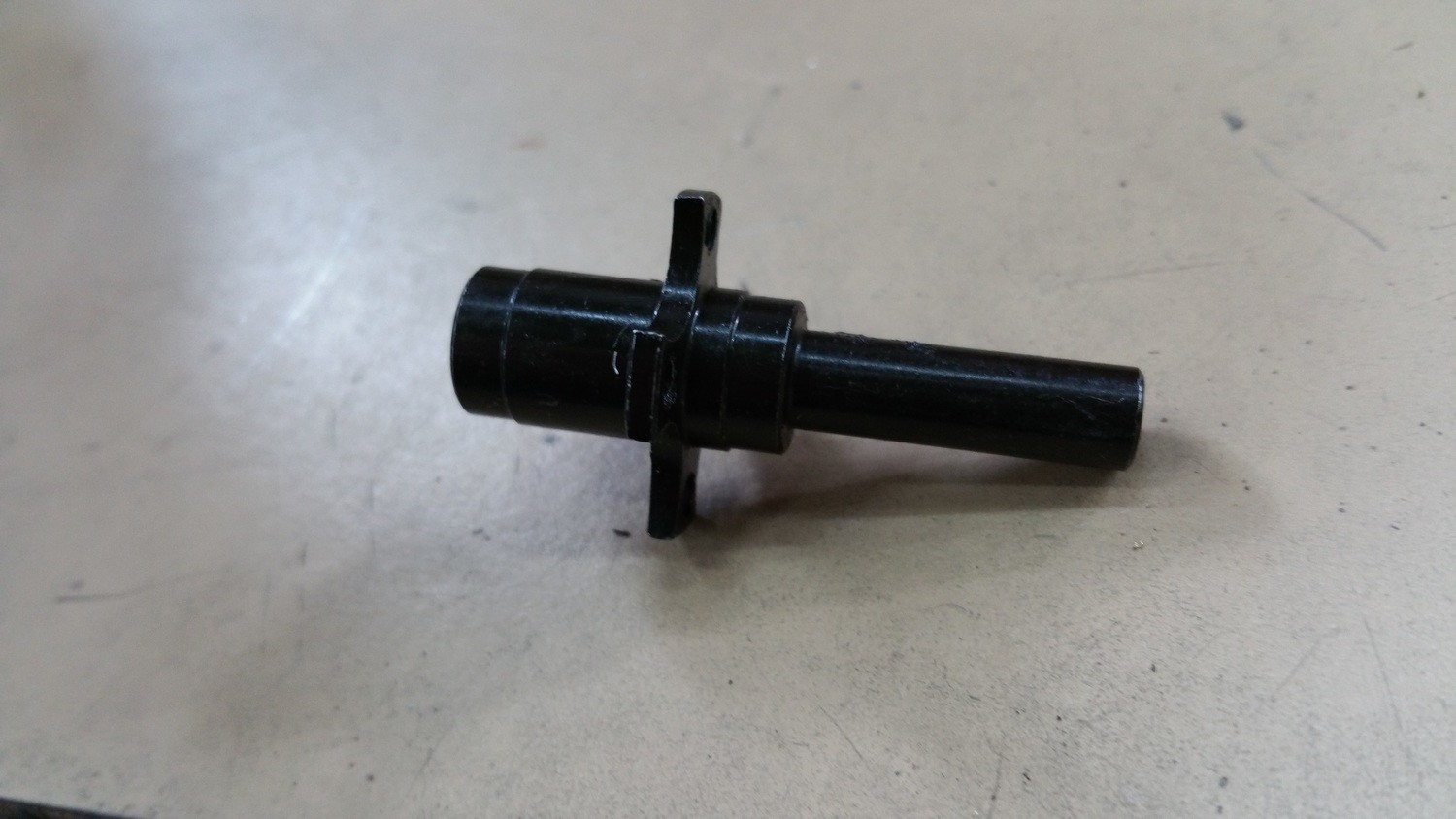

The Missing Link Locker.

This locker is used in Berg axles to join two XR length axle shafts with XR style tangs.

This locker is intended for use with Dlux or stock axle tubes.

The tubes will need to be drilled out to .328" or a 21/64" drill bit for approx 1" from the edge of where the tube meets the gear box.

Other tubes may work with some drilling but, this is to be done at your own risk, no promises on how strong your tubes may still be..

If using this locker in Dlux Super Lite axles, you will need to grind .075 off the length of the tang as the shafts will be too long and meet in the middle of the locker.
