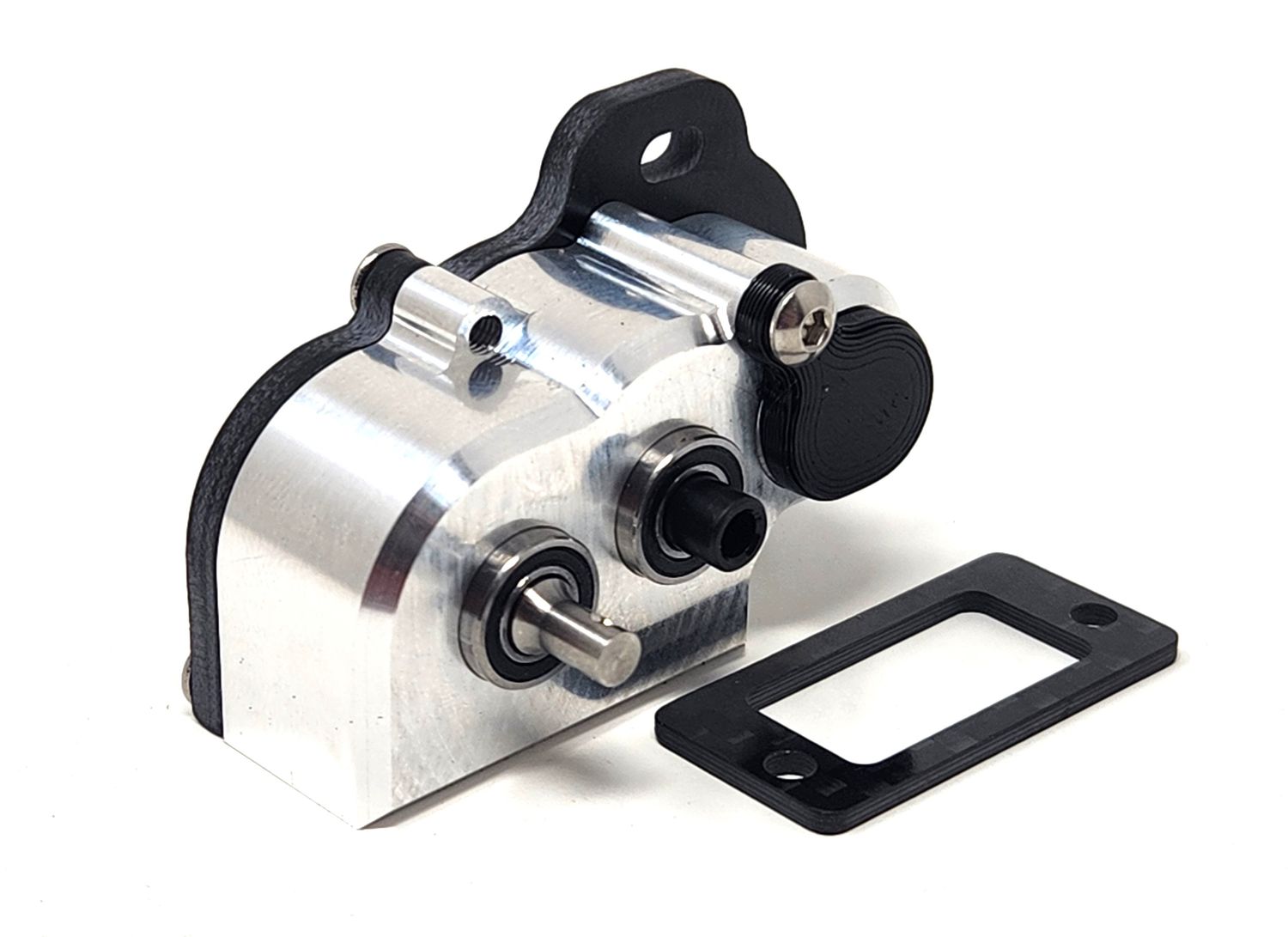

Dlux Portal Transmission for UTB18

Tiny Transmission for portal axles (gearing is not sufficient for non-portal axles).

This is the transmission is made to fit our Markhor chassis and portal skid plate.

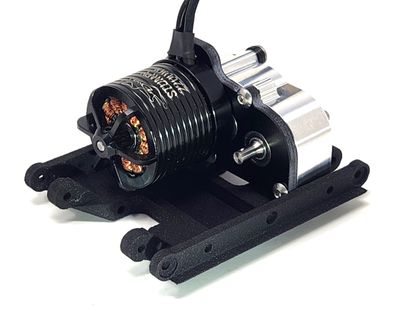

Forward facing motor with right side motor placement.

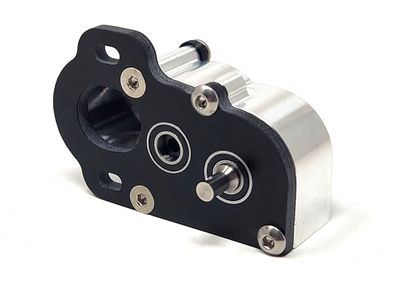

Fully enclosed.

Hardened chromoly gears.

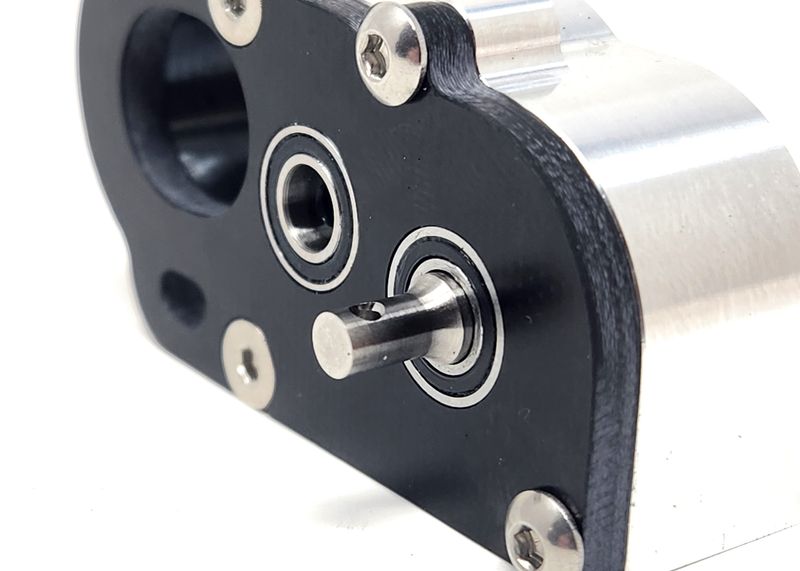

Titanium 3.5mm output shaft.

Dimensions: 52mm W x 34mm H x 21mm L (not counting output shaft)

Weight: 36.5g

Motor bolt holes 25mm on center. Skid plate mounting holes 28mm on center (M3 threaded holes).

Gear ratio 3:1 X pinon/spur combo. 36T spur gear (48 pitch).

Fits pinions from 11T to 18T (48 Pitch)

Gear ratio:

11T pinon: 9.8

12T pinion: 9.0

13T pinion: 8.3

14T pinion: 7.7

15T pinon: 7.2

16T pinion: 6.75

17T pinion: 6.35

18T pinion: 6.0

Chart above shows possible ratios using stock Axial portal and AR44 straight axle gears

****Fabrication required**** This is not a direct fit for any chassis except our UTB18 based Mini. Often you can just drill and countersink two mounting holes, other times you can fabricate a simple mounting adapter plate.
